REDARC 200W Folding Solar Panel Kit

Looking for a complete portable folding solar panel kit for your dual battery setup? REDARC’s monocrystalline portable camping solar panels are the perfect addition to any dual battery or off-road setup.

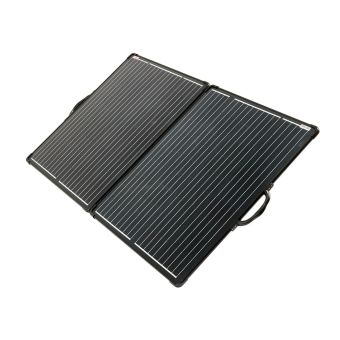

Folding out to 1350 x 790 x 25mm means that this panel tucks away neatly in the vehicle but opens up to capture an effective amount of sun power to keep you in-charge.

This kit includes an ETFE (ethylene tetrafluoroethylene) coating folding solar panel, as well as the regular, cables and accessories you need to take off and stay charged.

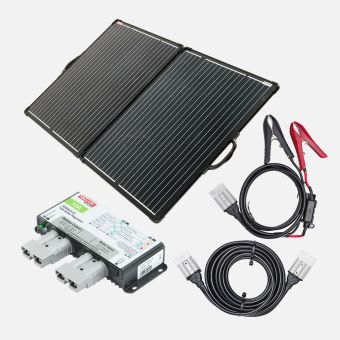

This kit includes:

•  200w folding solar panel
•  5m anderson to anderson cable
•  1.5m anderson to battery clip
•  20amp Solar Regulator

The Folding Solar Panels will feature genuine industry standard Anderson™ SB™ 50 connectors for convenience of plug-and-play portability and includes a free protective carry bag.

Perfect to add charge via the sun to your in-vehicle battery charger or battery management system for extended stays or additional power to run 12v accessories.

Just need the panel? You can choose to simply buy the 200W folding panel if you already have the regulators and cables on-board.

*Solar regulator battery default setting is AGM. REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.

*Not compatible with Lithium (LiFePO4) batteries.

SpecificationsSpecifications More Information

gtin_barcode	9338628006588
brand	REDARC
Solar Cell Type	Monocrystalline
Open Circuit Voltage	24.0 V
Watts	200W
Frame or Material	Anodized aluminium
Max. Power Voltage	20V
Short Circuit Current	10.8A
Conversion Efficiency	21.80%
Operating Temperature	−40°F to +185°F
Cable Length	1' (300 mm)
Weight	20.9 lb (9.5 kg)
height	0.98" (25 mm)
width	31.1" (790 mm)
depth | length	53.1" (1350 mm)
Warranty	2 Years
Dimensions Open	53.9" x 31.5" x 1" (1370 x 800 x 25 mm)
Dimensions Closed	27" x 31.5" x 2" (685 x 800 x 50 mm)
Power Tolerance	± 3%
Max Power Current	10A
Connector Type	Anderson™ SB™ 50
Peak Power	200W (2 x 100W)
