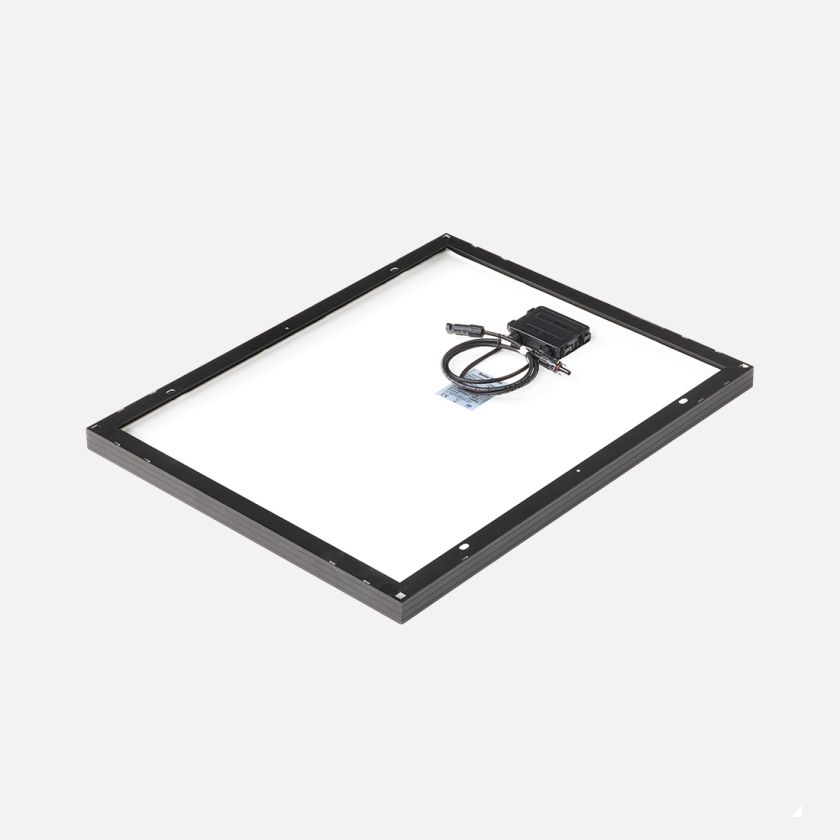

REDARC 80W Monocrystalline Black Frame Solar Panel

Please note, REDARC's solar panel range cannot be shipped to a PO Box. For further information or to discuss alternate shipping options, contact us here.

Looking for the best 80w solar panel for camping? REDARC's monocrystalline flat panels are highly efficient with a robust design. A tempered glass coating and a sturdy black aluminium frame ensure that our panels will withstand harsh road conditions and extreme weather conditions.

These are designed for a fixed installation, typically on the roof area of caravans, RV’s, motorhomes, as well as some camper trailer and 4x4 vehicle applications.

Featuring a black anodised aluminium frame and tempered glass coating they are well suited for outdoor use and employ MC4 style connectors for easy installation.

Fixed Solar Panels feature a weight improvement and smaller footprint design for their power output, effectively contributing to a lighter, smaller design with greater cell efficiency.

The Fixed Solar Panels will integrate into the REDARC product line and will be supported by existing Solar Regulator and Solar Accessory products.

Each panel is tested at time of manufacture to conform to CE standards, so you can be sure that the panel output is exactly as described in its specification.

FEATURES

• Monocrystalline construction
• Anodised Aluminium Frame
• Robust tempered glass coating
• Quality MC4 style connectors

DIMENSIONS

740 x 590 x 35mm

REDARC recommends that our products are installed by a qualified auto electrician or technician. We recommend product installation through a member of the REDNetwork, suitably qualified auto electrician or installer which can be found using the Find An Installer tool on the REDARC website.

SpecificationsSpecifications More Information

gtin_barcode	9338628010998
Solar Cell Type	Monocrystalline
Open Circuit Voltage	22.56V
Frame or Material	Anodized Aluminium
Max. Power Voltage	18.8V
Short Circuit Current	4.47A
Operating Temperature	–40°C to +85°C
Cable Length	900mm
Weight	4.8kg
height	740mm
width	590mm
Warranty	2 Years
Max Power Current	4.26A
Connector Type	MC4-style
