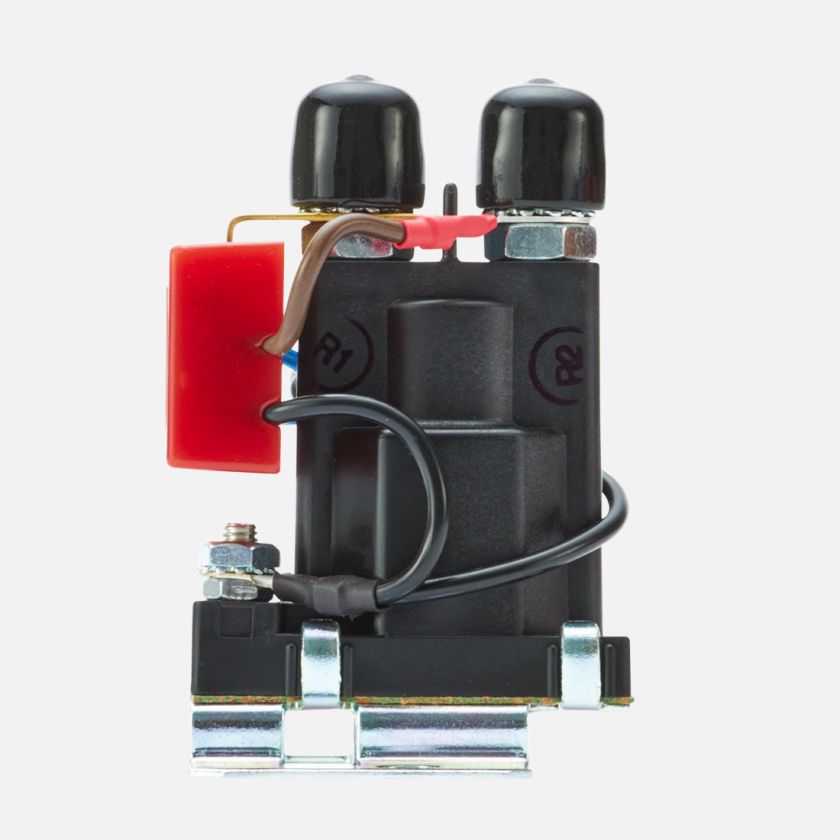

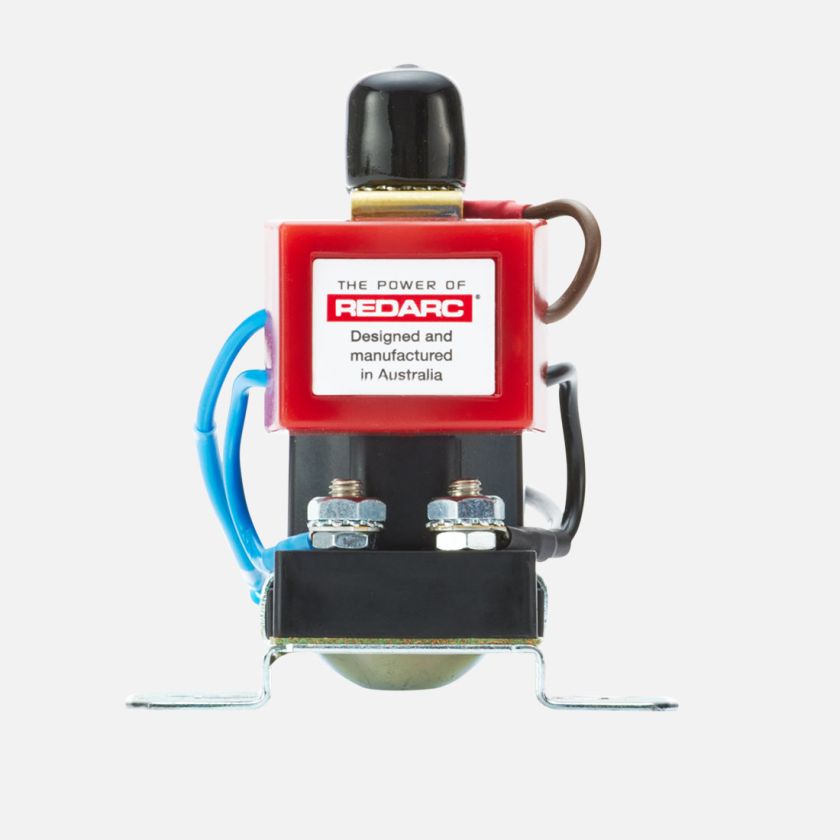

REDARC Dual Sensing Smart Start Battery Isolator 12V 100A

The REDARC Smart Start® SBI12D is a microprocessor controlled battery isolator used in a dual battery system. It is designed to be used in dual battery systems as a solenoid priority system to protect the start battery from excessive discharge. The SBI12D provides 12 volt DC incorporating 100A of continuous ratings.

Dual Sensing

The dual sensing model is used to isolate the start and auxiliary batteries in a system where the auxiliary battery may also be charged by an external source such as Solar panels or an external AC battery charger. The SBI12D also allows the start battery to be charged by the external source once the auxiliary battery reaches 13.2 volts. This is useful to top up the start battery.

Power Saving Technology

The Smart Start SBI12D incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

Used primarily in 4WD and commercial vehicles, the Smart Start SBI is a safe way to charge an auxiliary battery and should often be installed with a high quality fuse kit.

Features

• Overmould design
• Compact in size and easy to install
• Silver contacts for longer life and suitable for marine applications
• Power saving technology
• Fault indication
• Fully surge protected

Not sure what dual battery system is best for your vehicle? Let Shaun Whale explain more.

REDARC recommends that our products are installed by a qualified auto electrician or technician. We recommend product installation through a member of the REDNetwork, suitably qualified auto electrician or installer which can be found using the Find An Installer tool on the REDARC website.

SpecificationsSpecifications More Information

gtin_barcode	9338628001330
brand	REDARC
Max. Inrush Current	400A
Max. Continuous Current	100A
Turn On Voltage	13.2V
Turn Off Voltage	12.7V
Turn On Delay	5 seconds
Turn Off Delay	10 seconds
Standby Current	<5mA
Weight	7 oz (200 g)
height	2.48" (70 mm)
width	2.95" (75 mm)
depth | length	3.15" (80 mm)
Warranty	2 Years
System Voltage	12V
Output Voltage	12V DC
Input Fuse Rating	100A
Output Fuse Rating	100A
