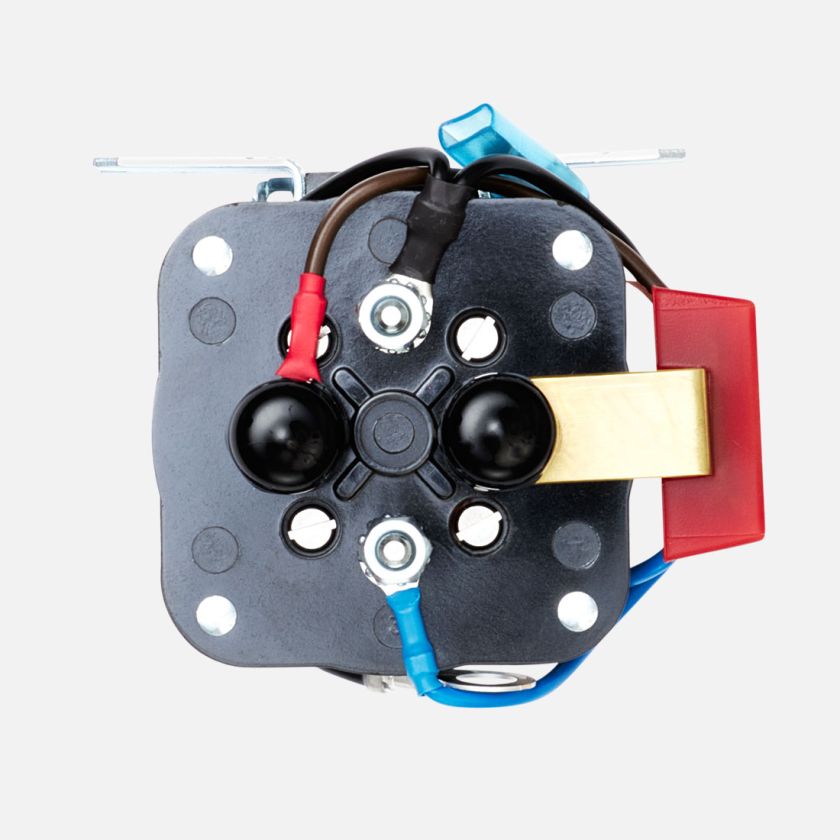

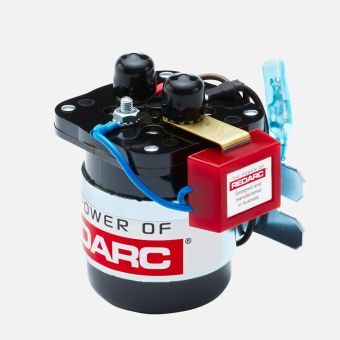

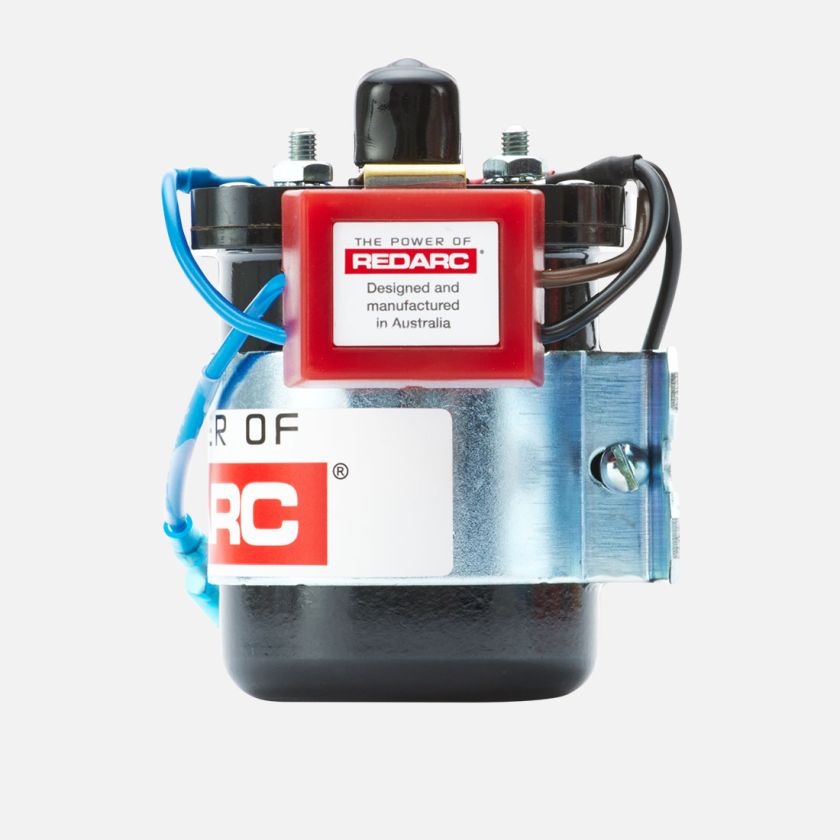

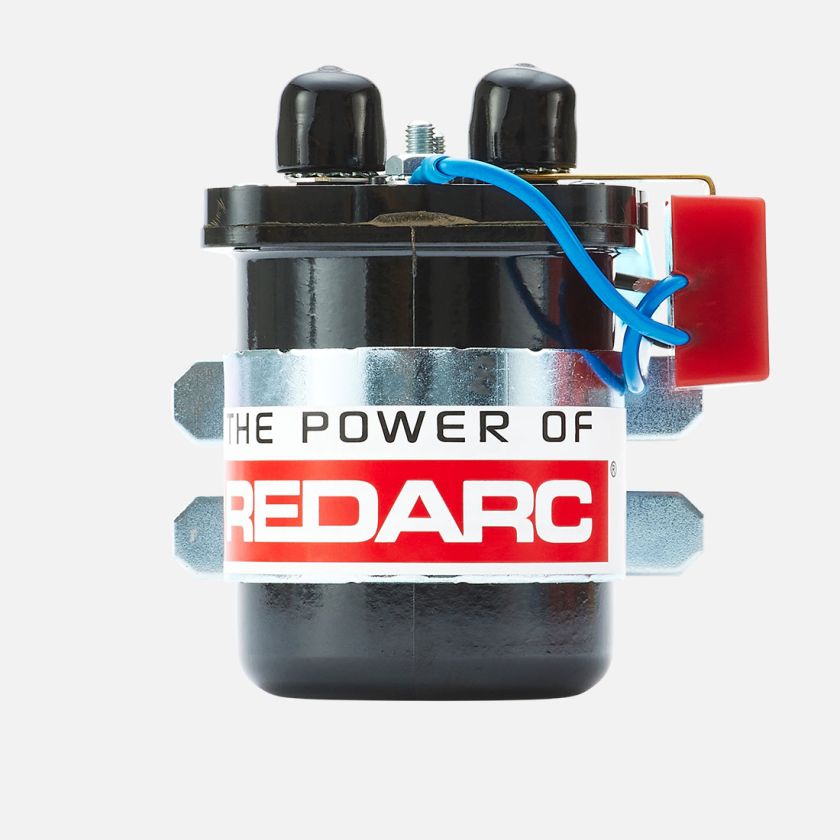

REDARC Dual Sensing Smart Start Battery Isolator 12V 200A

The REDARC Smart Start® SBI212D is a microprocessor controlled dual battery isolator used in a dual battery system. It is designed to be used as a solenoid priority system to protect the start battery from excessive discharge while allowing the auxiliary battery to supply non-essential loads. The SBI212D provides 12 volt DC incorporating 200A of continuous ratings and is designed for extremely heavy-duty operations.

Dual Sensing

The dual sensing model has the added feature of allowing charge both ways where the auxiliary battery may also be charged by an external source such as Solar panels or an external AC battery charger. The SBI212D will also allow the start battery to be charged by the external source once the auxiliary battery reaches 13.2 volts to help top up the start battery.

Power Saving Technology

The Smart Start SBI212D incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

Used primarily in 4WD and commercial vehicles, the Smart Start SBI is a safe way to charge an auxiliary battery and should often be installed with a high quality fuse kit.

Features

• Overmould design
• Compact in size and easy to install
• Silver contacts for longer life and suitable for marine applications
• Power saving technology
• Fault indication
• Fully surge protected

Not sure what dual battery system is best for your vehicle? Let Shaun Whale explain more.

REDARC recommends that our products are installed by a qualified auto electrician or technician. We recommend product installation through a member of the REDNetwork, suitably qualified auto electrician or installer which can be found using the Find An Installer tool on the REDARC website.

SpecificationsSpecifications More Information

gtin_barcode	9338628004485
brand	REDARC
Max. Inrush Current	600A
Max. Continuous Current	200A
Turn On Voltage	13.2V
Turn Off Voltage	12.7V
Turn On Delay	5 seconds
Turn Off Delay	10 seconds
Standby Current	<5mA
Weight	1.3 lb (600 g)
height	3.54" (90 mm)
width	3.74" (95 mm)
depth | length	3.94" (100 mm)
Warranty	2 Years
System Voltage	12V
Output Voltage	12V DC
Input Fuse Rating	200A
Output Fuse Rating	200A
