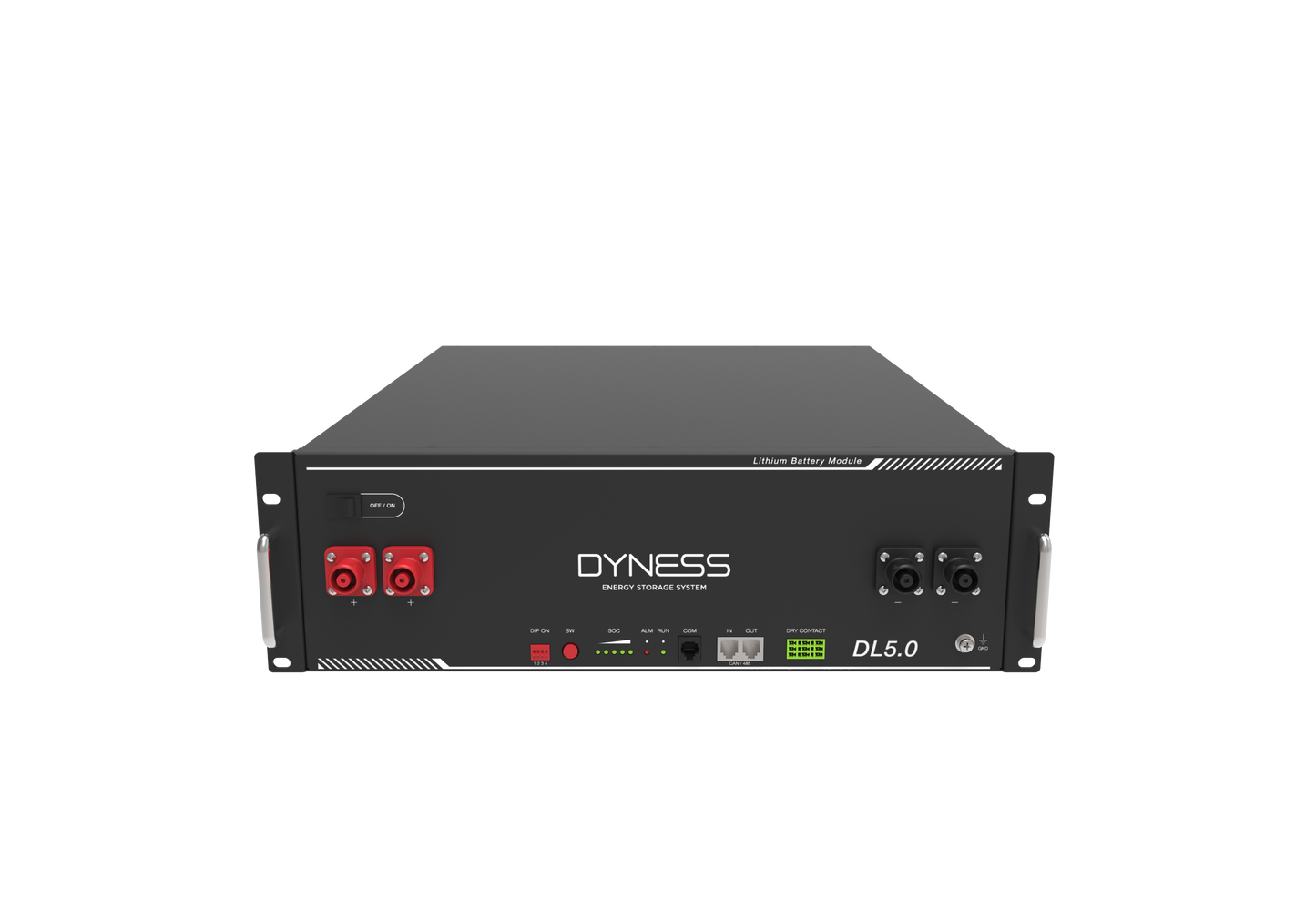

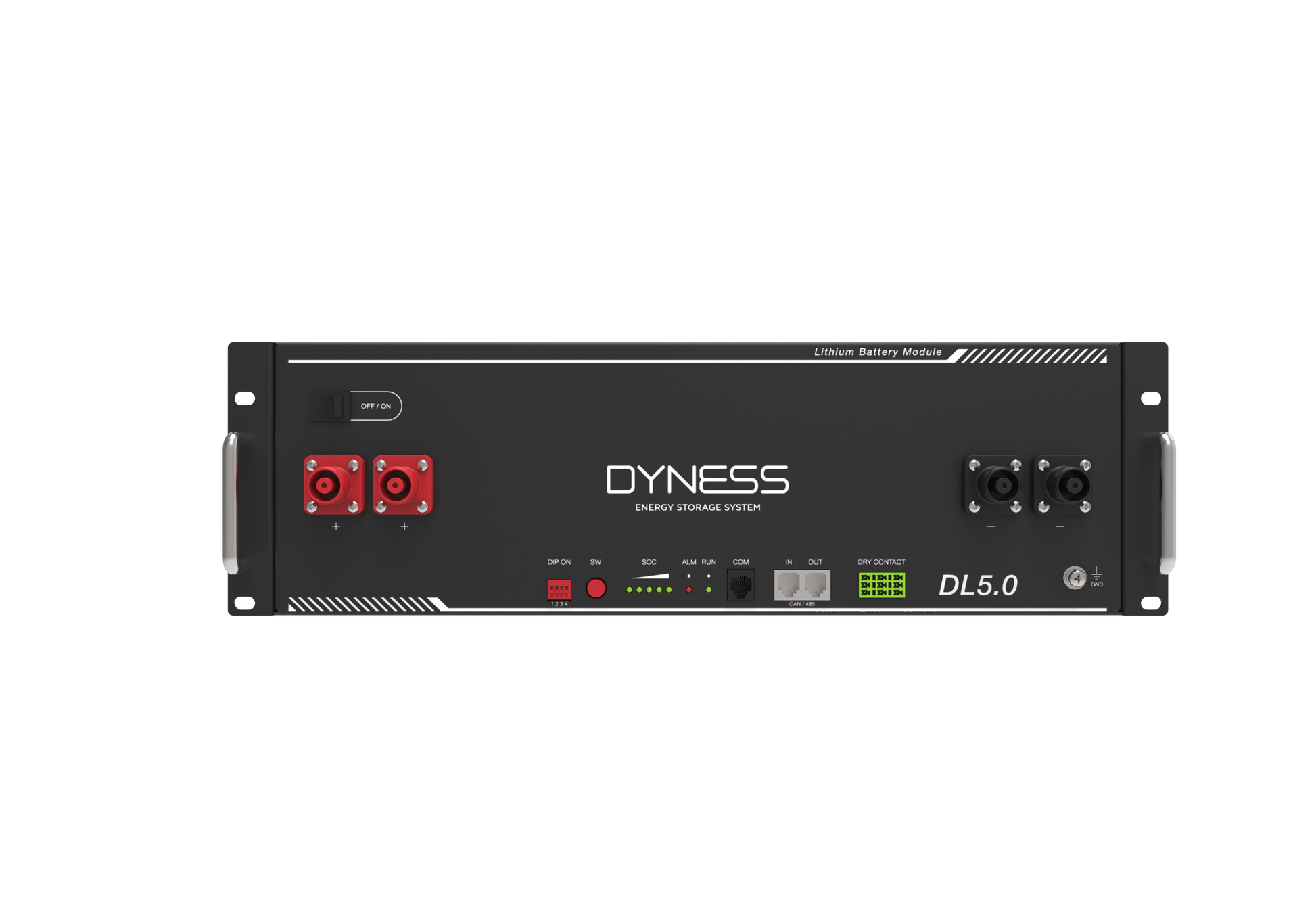

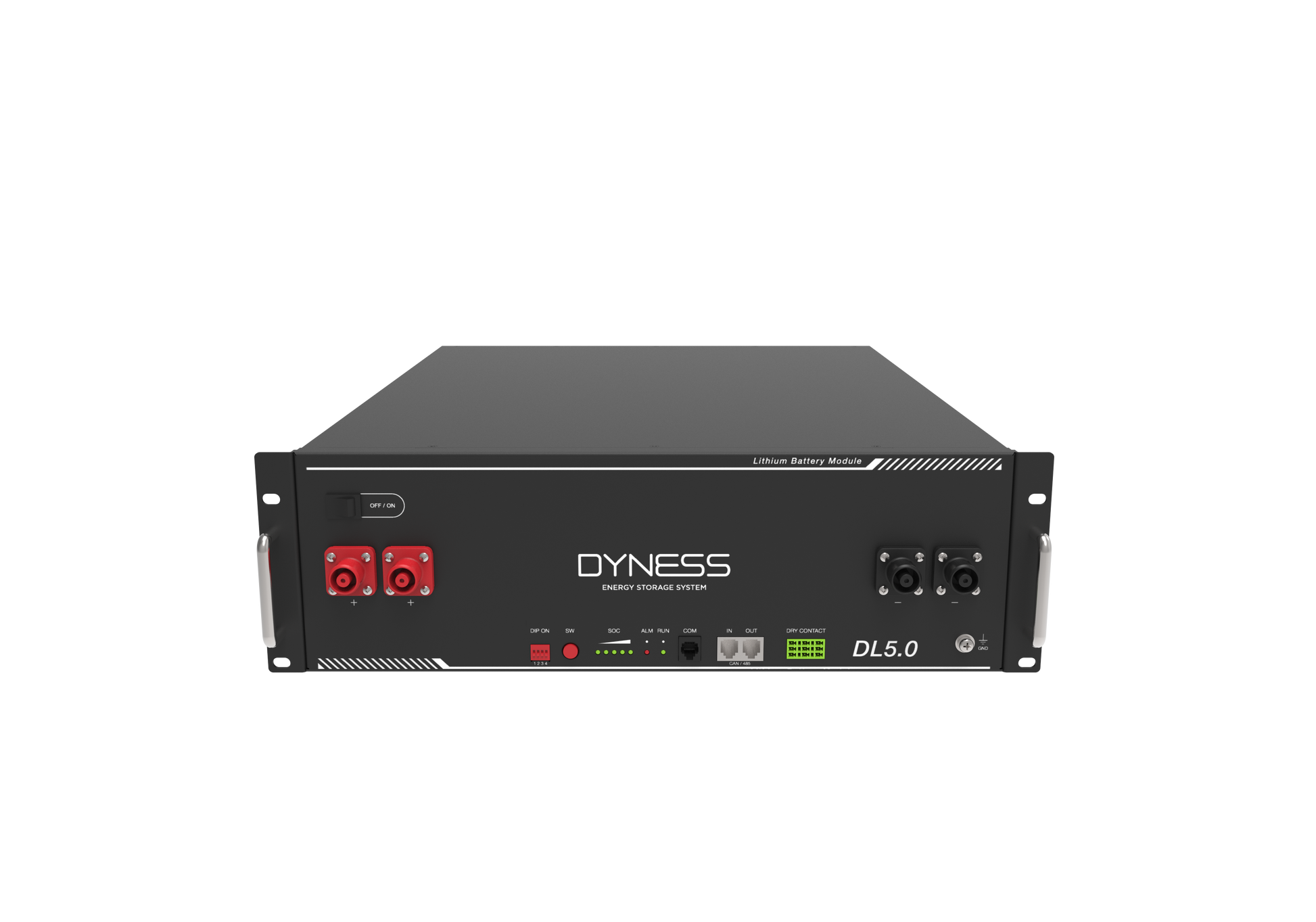

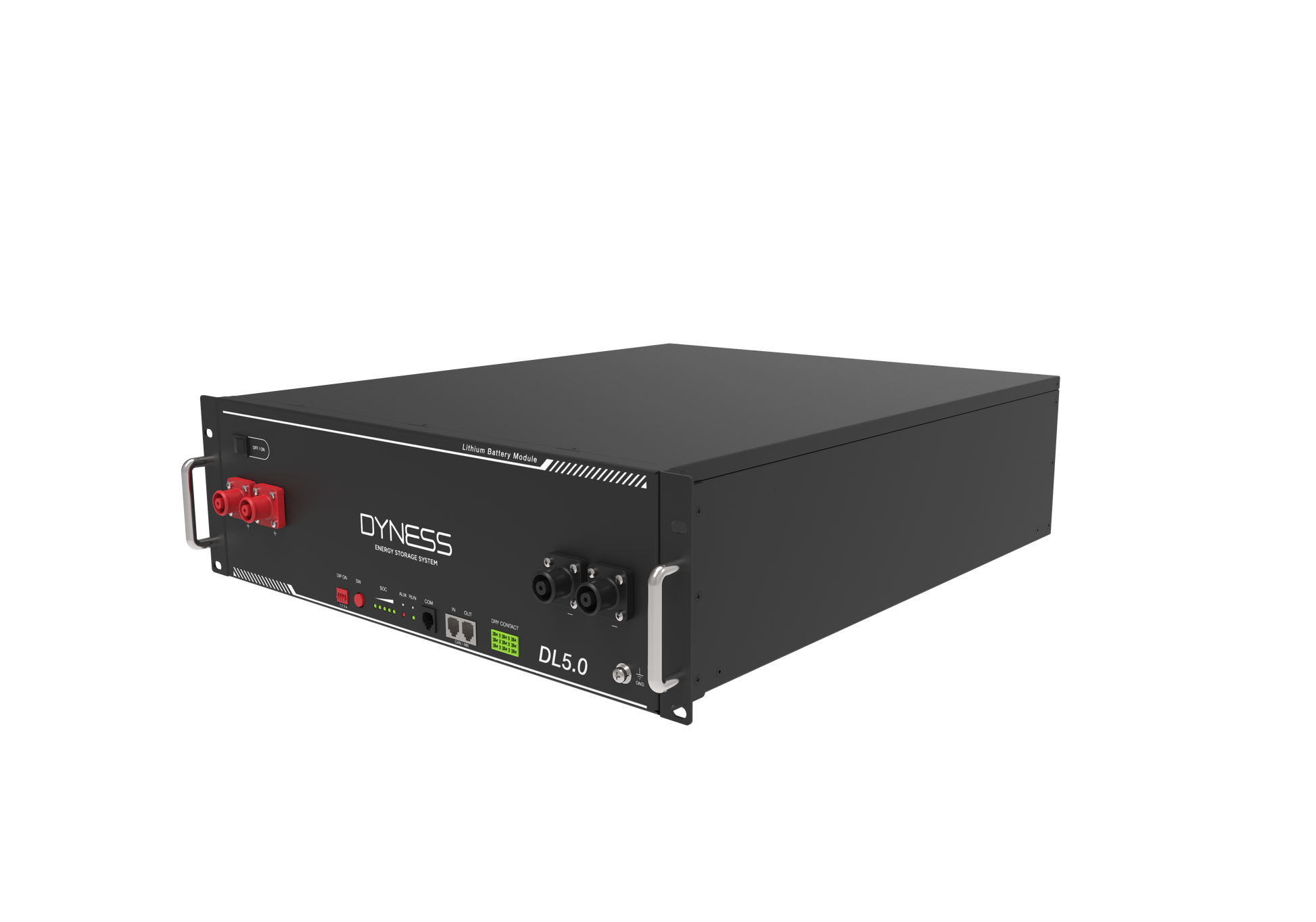

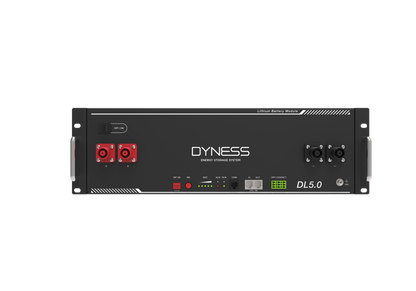

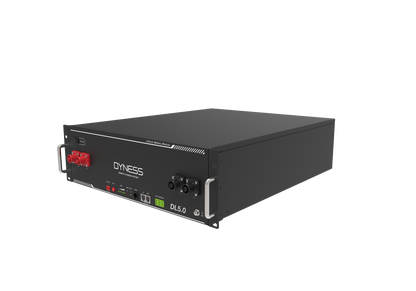

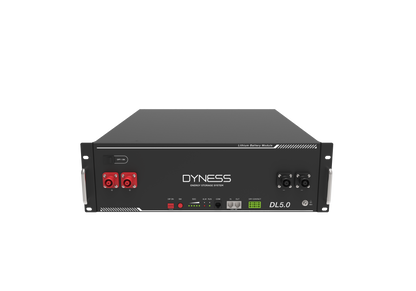

Dyness DL5.0 - Rack mounted Battery 5kwh

Dyness DL5.0 - Rack mounted Battery 5kwh

Regular price $4,370.00 NZD
Regular price Sale price $4,370.00 NZD
Sale Sold out
Shipping calculated at checkout.

Dyness - Leading the Way in Battery Technology!

Dyness batteries are not just batteries; they're a robust, safe, and smart solution for your energy needs. Approved by the Clean Energy Council (CEC) and backed by a full 10-year warranty, these batteries are designed to revolutionize the way you store energy.

The Power of Choice: Why We Selected Dyness LiFePO4 Batteries

In our quest to provide the best energy solutions, we've carefully selected Dyness LiFePO4 (Lithium Iron Phosphate) batteries for their outstanding performance and reliability. We believe in offering products that not only meet but exceed expectations. That's why we chose Dyness - a brand synonymous with safety, efficiency, and longevity.

LiFePO4 batteries stand out in the energy storage landscape for several compelling reasons. These batteries are significantly safer and lighter than traditional lead-acid batteries. Their extended lifespan, often surpassing 10 years, combined with the capability for faster charging and discharging, makes them an ideal choice for both environmental and economic sustainability. They can be fully discharged without sustaining damage, meaning a smaller battery bank can deliver more usable power - a crucial feature for efficient energy management.

By partnering with Dyness, we are not just providing a product; we're offering an energy solution that is in tune with the future - one that balances advanced technology with environmental responsibility. It's about making a choice that benefits our customers and our planet alike.

Unmatched Safety and Efficiency

  • Lightweight and long-lasting - enjoy 10+ years of reliable power.
  • Complete discharge without damage - more usable power with a smaller battery bank.
  • Built-in protections including over current, over voltage, temperature, and short circuit.

Globally Certified for Peace of Mind

  • Dyness batteries boast international certifications like UN38.3, TUV, CE, IEC62619, and more.

Expandable and Versatile

  • Easily expand up to 40 units for commercial and industrial use.
  • Includes stacking brackets for easy storage solutions or fits in standard 19" Rackmount cabinets.

Compatible with Leading Inverters

  • Works seamlessly with brands like Growatt, Victron, Goodwe, and SMA and many more.+

See here for Datasheet

Product Specifications at a Glance:

Battery Type LiFePo4
Nominal capacity 100AH
Total energy 5.2KWh
Nominal voltage 51.2Vdc
End of discharge voltage 44.8V
End of charge voltage 57.6V
Recommended C rate 0.5c
Recommended charge/discharge Current 50Adc
Max charge/discharge Current 75Adc
Peak charge/discharge Current 100Adc
Communication interface CAN and RS485
Expansion Up to 40 units in Parallel
Dimension W 481 H 140 D 535
Net Weight About 44 Kg
Cycle life (90% DOD, 25℃) 6000 cycles
Protection Over voltage, Low voltage, Over current, Over temperature, Low temperature, Short circuit.
Warranty 10 years
