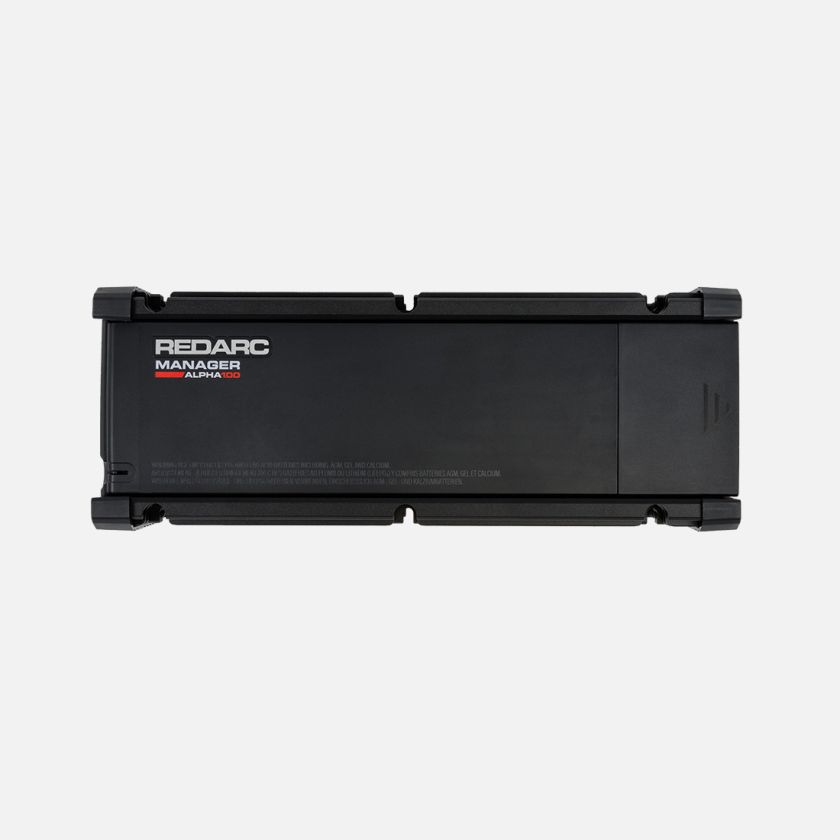

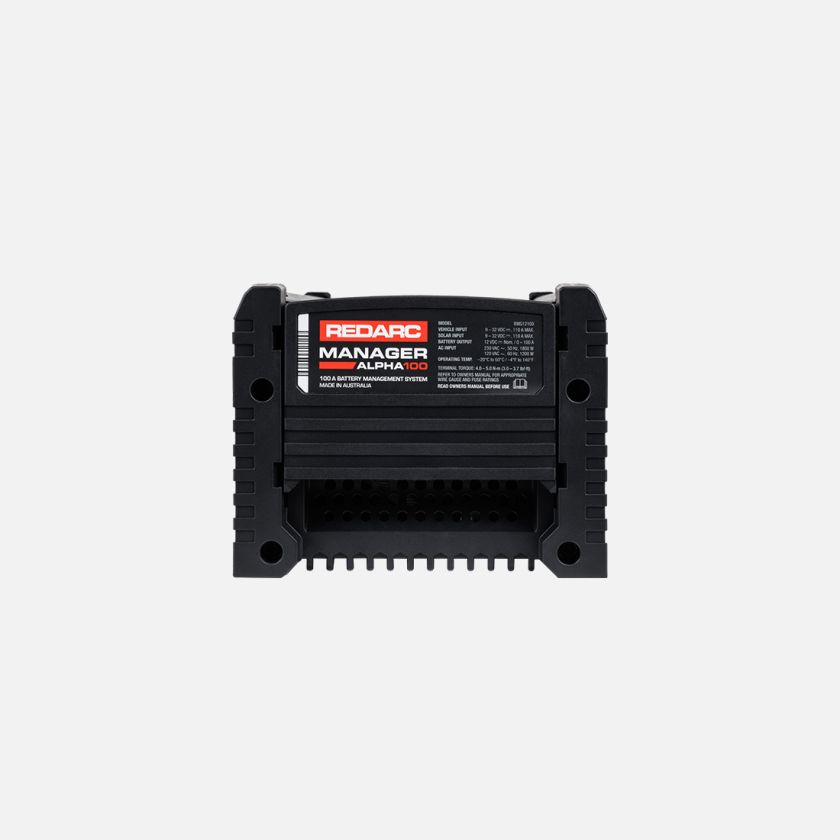

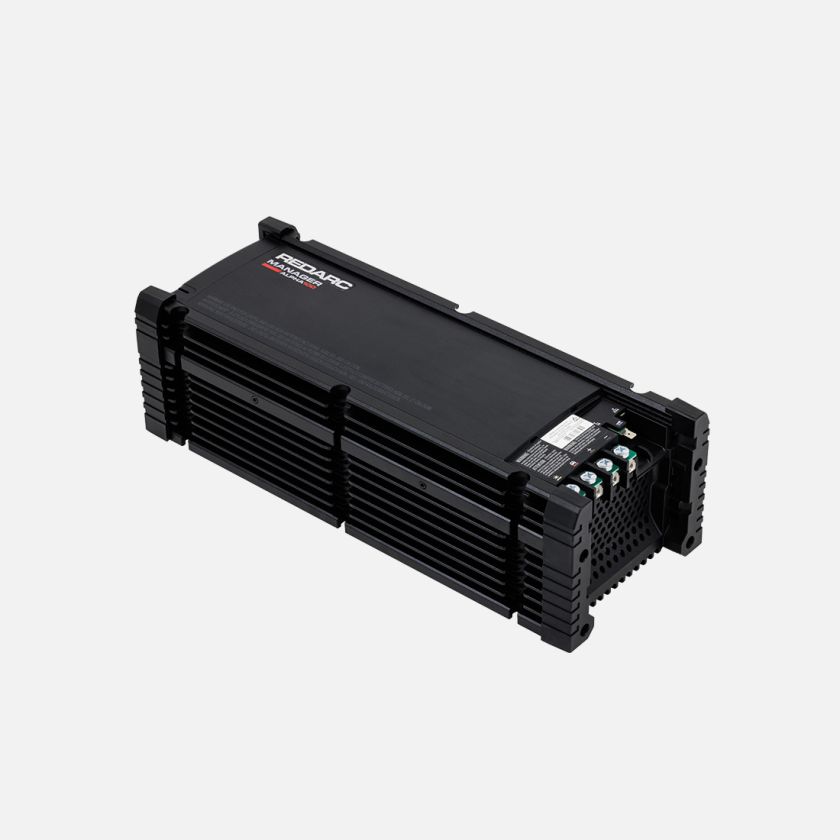

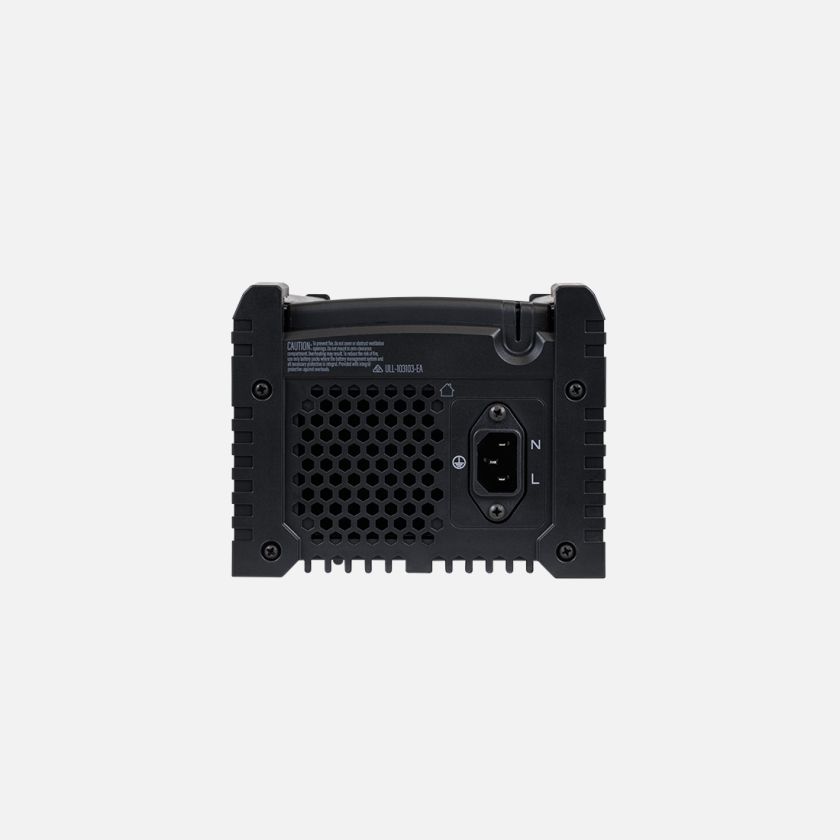

REDARC Manager Alpha100 with RedVision

Charge secondary batteries used in recreational vehicles, caravans and camper trailers, with REDARC’s Manager Alpha100 battery management system. Effortlessly power high demand appliances with a combination of DC, AC and solar charging. No matter where your adventures take you, the Alpha100 achieves the best charge for your secondary batteries.

CHARGE

The Manager Alpha100 battery management system is capable of delivering 100A of charge from a combination of available power sources including vehicle (DC), mains (AC) and solar. As the next generation of REDARC’s trusted battery management technology, charge your batteries up to three times faster than the previous Manager30. Meaning you’ve always got the power on hand to charge your batteries faster than you can drain them.

The Manager Alpha's built in Green Power Priority™ will prioritise solar input, minimising the load on your alternator and saving fuel. No matter whether you’re driving, plugged in at camp or soaking up the sun, run everything from induction cooktops to fridges and air conditioners without skipping a beat.

Maximise your vehicle's capacity with the Manager Alpha, which is up to 55% smaller and 28% lighter than competing systems that require multiple parts to deliver the same features, leaving more room for adventure essentials.

The Manager Alpha100 features a Start Battery Charge function which is able to use excess solar power to keep your start battery charged. As well as a Start Battery Recovery mode to bring flat start batteries back to life.

MONITOR

Featuring REDARC’s innovative RedVision technology and Bluetooth® compatibility, keep on top of your charge and battery level information in real time through the included RedVision Pro Display and app. It allows you to view state of charge, remaining charge and current flow information and at up to five times more accurate than the leading competitor, you can be sure that “5 hours left” means “5 hours left”.

Incorporating latest Bluetooth® 5.1 technology, the Smart Battery Monitor delivers reliability over distances up to 42m so you can stay connected anywhere at camp.

BUILT TOUGH

The Manager Alpha has been tested to the toughest vibration standards in the world and is always ready for adventure. Able to keep charging in the frigid extremes of the highlands or the scorching heat of the outback, it’s made in Australia, so you know it won’t let you down.

FEATURES

• Simultaneous 100A charging from DC, AC and solar power
• Up to 55% smaller and 20% lighter than comparable systems
• Start battery back charge capability
• RedVision compatibility
• Bluetooth® 5.1 technology
• 5 times more accurate monitoring than competitors

NOT SURE WHICH MODEL IS RIGHT FOR YOU?

Compare the features side by side to find the perfect match for your power needs.

FEATURESNOT SURE WHICH MODEL IS RIGHT FOR YOU?

Compare the features side by side to find the perfect match for your power needs.

FEATURESLEARN MORE SpecificationsSpecifications More Information

gtin_barcode	9338628006847
Nominal Voltage	12V
Current Measurement Range	± 500A
Start Battery Input Voltage Range	9-32VDC
Solar Input Voltage Range	9-32VDC
Nominal Output Voltage	12V
Compatible Battery Types	Gel, AGM, Calcium, Standard Lead Acid, Lithium
Nominal Current Rating	100A
AC Input Voltage Range	95 – 264 VAC rms / 45 – 65 Hz
Operating Temperature	–20°C to 60°C
Weight	6.1kg
height	120mm
width	154mm
depth | length	400mm
Warranty	2 Years
