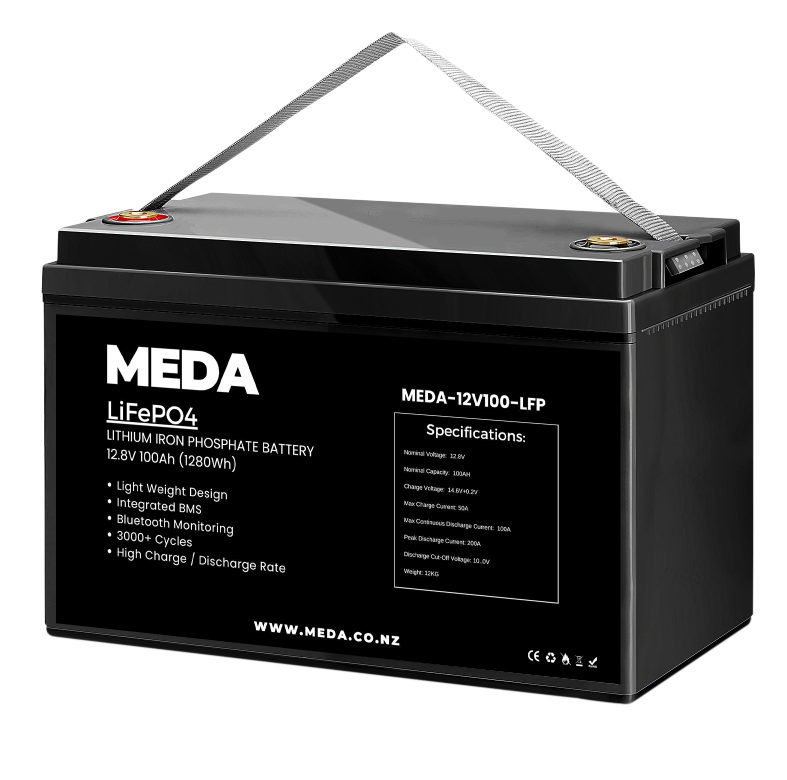

MEDA 12v 100ah Lithium Battery with Bluetooth
MEDA 12v 100ah Lithium Battery with Bluetooth
Couldn't load pickup availability
Premium Power for Motorhomes, Caravans, RVs & Marine Applications
The MEDA-12V100-LFP is the ideal lithium battery solution for mobile and off-grid power systems. Whether you're travelling in a motorhome, cruising on a boat, or living tiny, this lightweight, high-performance battery delivers reliable, long-lasting energy with Bluetooth-enabled smart monitoring and a 7-year local warranty for peace of mind.
🔋 Why Choose the MEDA-12V100-LFP?
- High-Quality Gotion Cells: Manufactured using top-tier lithium cells owned by Volkswagen — the same used in their EV lineup
- Integrated JBD BMS: Advanced Battery Management System with Bluetooth monitoring via app
- NZ-Based 7-Year Warranty: Local support, no overseas warranty headaches
- High Discharge Performance: 100A continuous, 200A peak for short bursts
- Flexible Setup: Supports up to 4 units in series or parallel (not both at once)
⚙️ Key Features
- Lightweight & compact — only ~12kg
- Over 3,000 cycles @ 80% DoD
- Bluetooth monitoring via JBD App
- Integrated smart BMS with protection features
- Supports series (up to 48V) or parallel connections (up to 400Ah)
📐 Dimensions & Physical Specs
- Size: 337mm (W) x 183mm (D) x 215mm (H)
- Weight: Approx. 12kg
- Terminal: M8
📊 Technical Specifications
- Model: 12V100Ah
- Nominal Voltage: 12.8V
- Nominal Capacity: 100Ah
- Energy: 1280Wh
- Cycle Life: >3000 cycles @ 80% DOD, 25°C
- Self Discharge: ≤3% per month @ 25°C
- Charge Voltage: 14.6V ± 0.2V
- Standard Charge Current: 20A
- Max Charge Current: 50A
- Max Continuous Discharge: 100A
- Peak Discharge: 200A (<3s)
- Discharge Cut-off Voltage: 10.0V
- Charge Temp: 0°C to 45°C @ 60±25% RH
- Discharge Temp: -20°C to 60°C @ 60±25% RH
- Storage Temp: 15°C to 35°C (monthly charge/discharge recommended)
📦 Series & Parallel Connection Notes
Supports up to 4 batteries in either series or parallel — not both simultaneously.
✅ Warranty
Backed by a 7-Year Local Warranty – Enjoy the confidence of NZ-based support and service.
Note: For installation into 12V/24V/48V systems, MEDA recommends consultation with an installer or licensed electrician.
