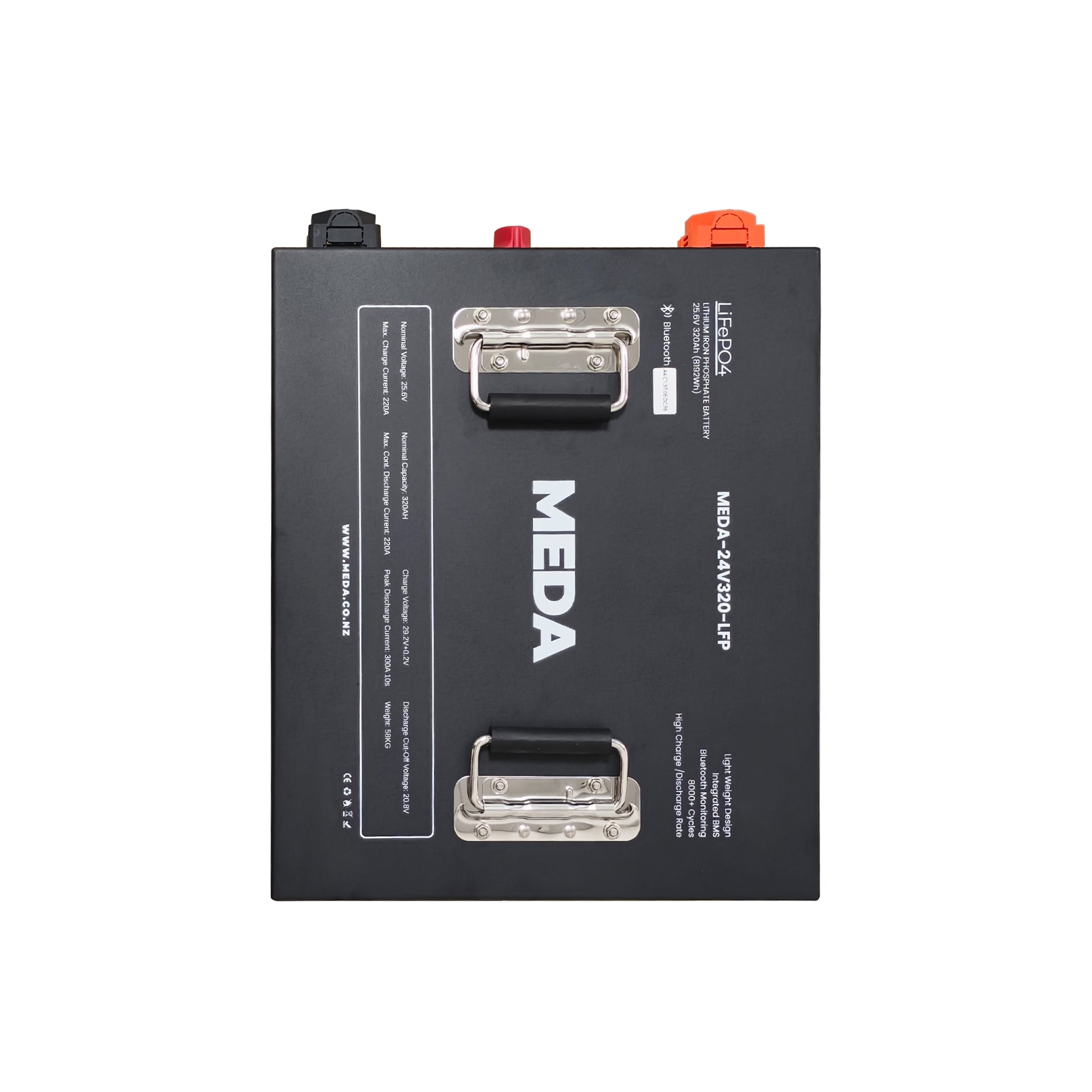

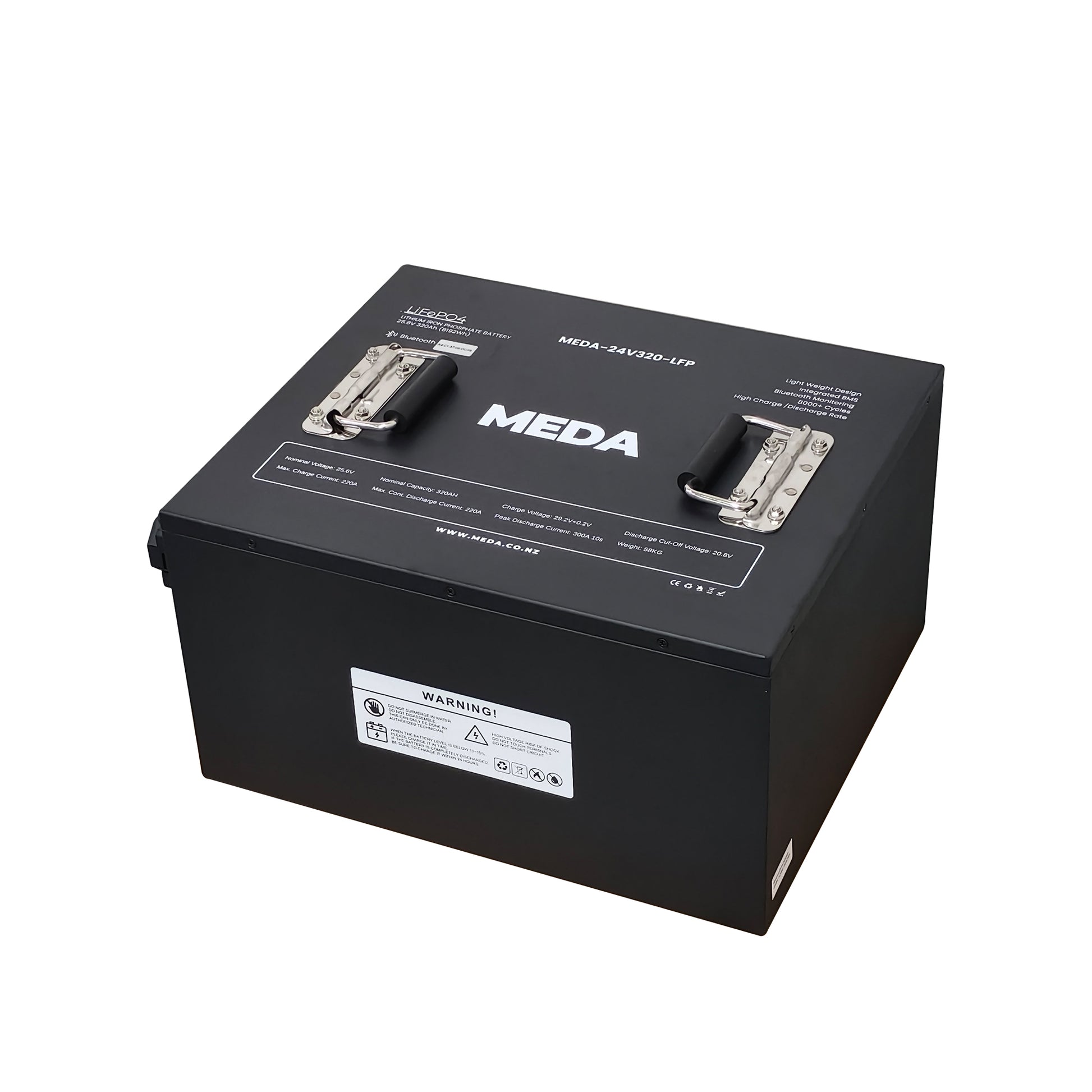

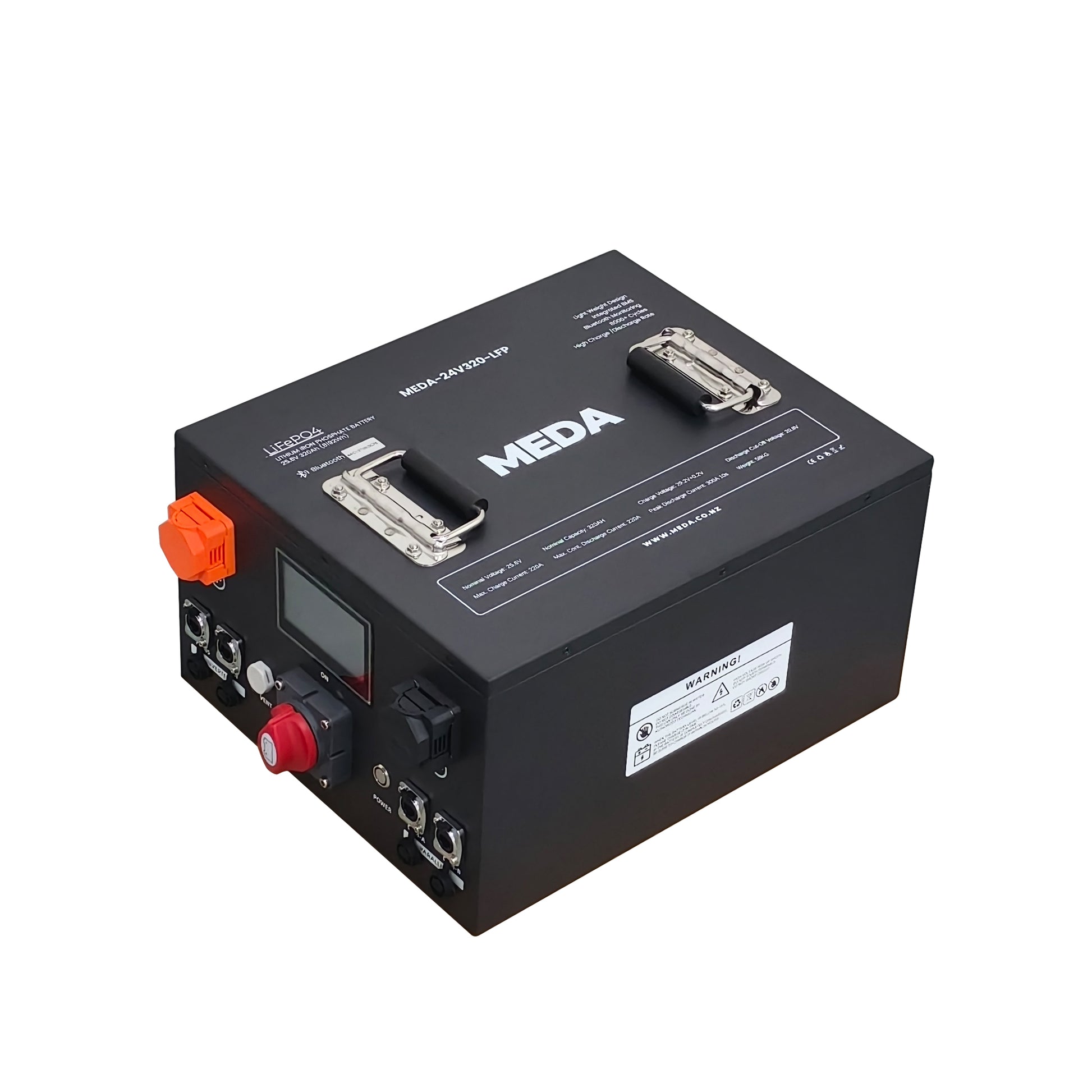

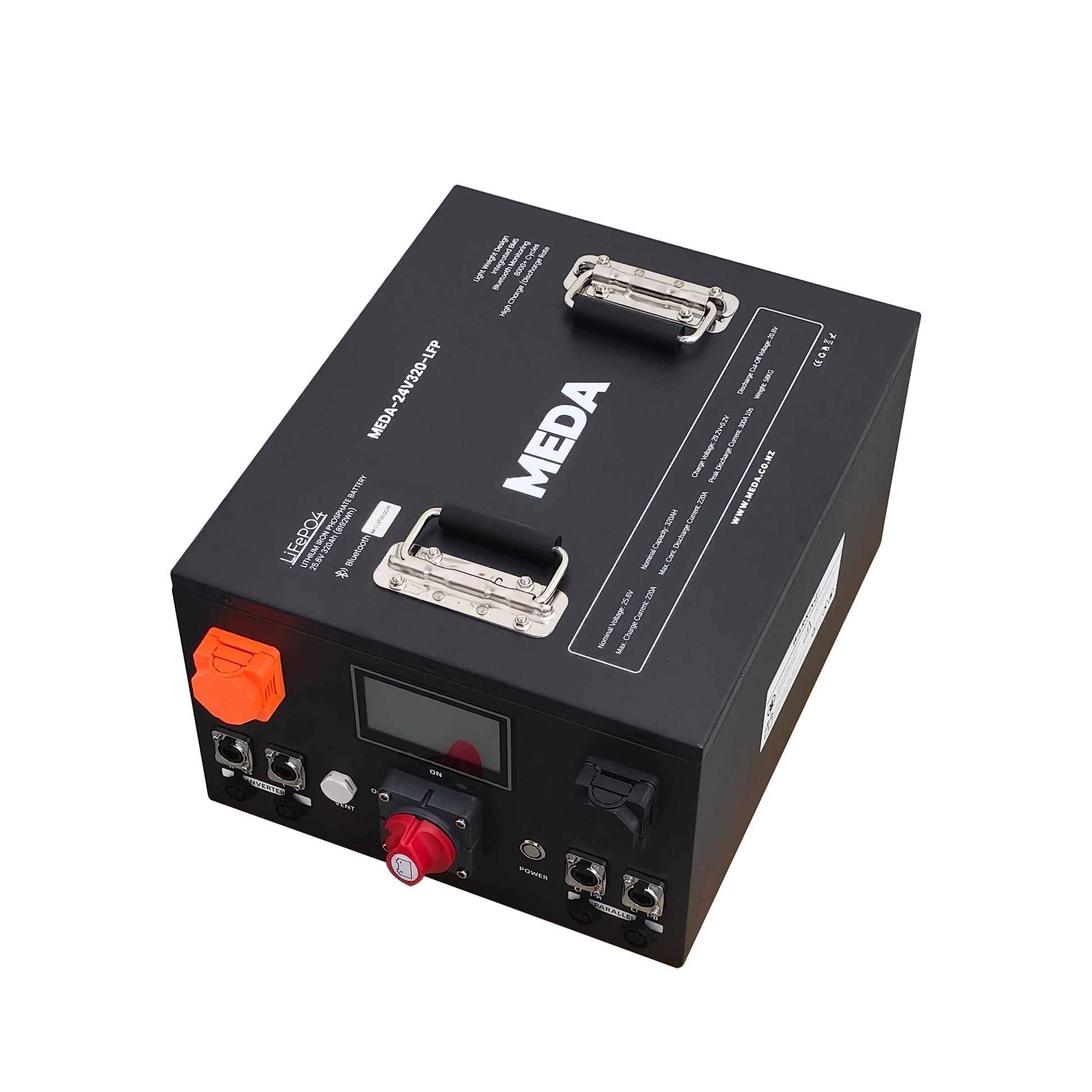

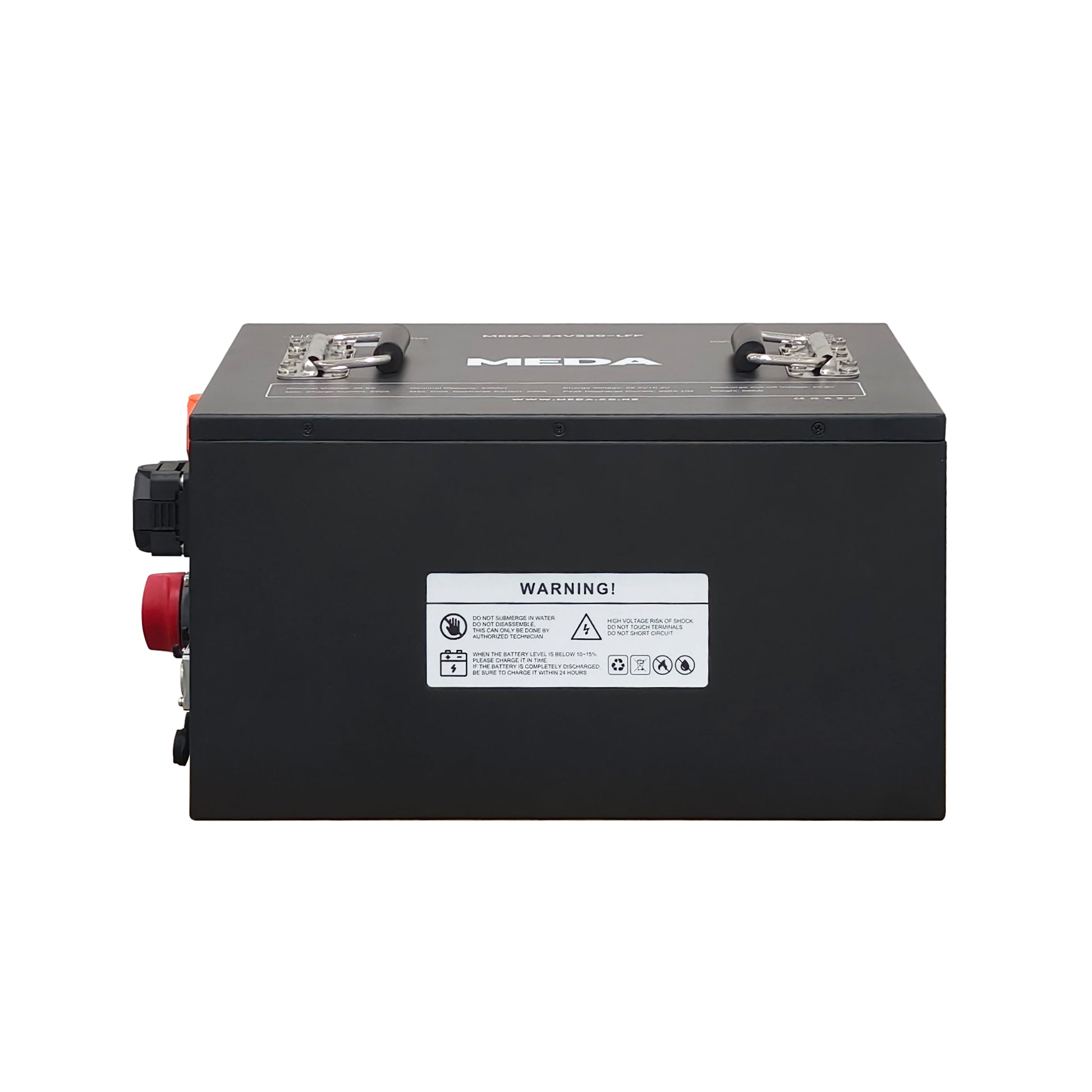

MEDA 24v 320ah Lithium Battery with Bluetooth

MEDA 24V 320Ah Lithium Battery – LCD Display, Bluetooth, CANbus, Self-Heating

The Flagship Battery for Serious Off-Grid & Mobile Power Systems

Introducing the MEDA 24V 320Ah Lithium Battery – the most powerful leisure battery in our lineup. Purpose-built for high-demand motorhomes, cabins, and backup systems, this 8.19kWh LiFePO₄ beast features smart monitoring, seamless integration with Victron and other inverter brands, and an intuitive LCD screen to keep you in control.

Key Features

• Huge Capacity: 24V / 320Ah = 8.19kWh of reliable energy
• Smart Monitoring: Built-in Bluetooth for real-time battery insights

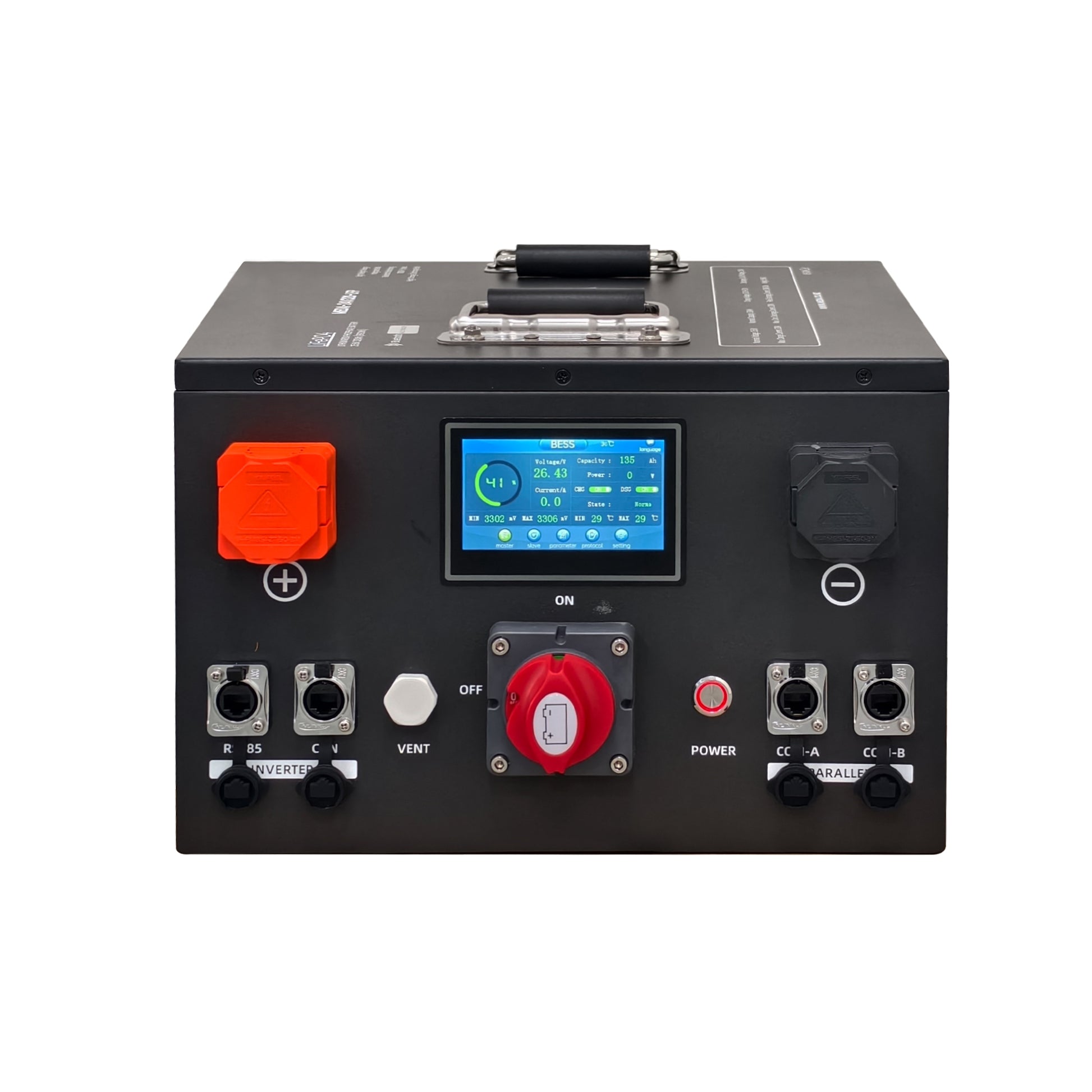

• Intuitive LCD Screen: See voltage, SOC, current, and status at a glance
• CAN & RS485 Comms: Fully compatible with Victron and other advanced inverters
• Self-Heating: Charges safely even in cold environments
• Built-In Isolator Switch: Easy access for system maintenance and safety
• Long Cycle Life: 8000+ cycles at 60% DOD
• Flexible Configurations: Parallel up to 16 batteries (with CAN)
• Weather Ready: IP54-rated enclosure for added protection

Specifications

• Nominal Voltage: 25.6V
• Nominal Capacity: 320Ah
• Nominal Energy: 8.19kWh
• Charge Voltage: 29.2V
• Discharge Cut-Off Voltage: 20.8V
• Max Charge/Discharge Current: 220A
• Peak Discharge: 300A (10s)
• Operating Temp: Charge 0°C–55°C / Discharge -20°C–60°C
• Storage Temp: -10°C–45°C
• Dimensions: 360 × 430 × 235 mm
• Weight: 58kg
• IP Rating: IP54

Ideal For:

High-end motorhomes, off-grid homes, marine systems, commercial RV setups, battery backup, and more.

✅ Warranty

Backed by a 10-Year Local Warranty – NZ-based support and service you can rely on.

Note: For system integration, MEDA recommends consulting your installer or licensed electrician.
