The Off Grid Motorhome Kit - Elite Edition

Advanced Power for Full Time Off Grid Living

Step into true energy independence with the Off Grid Motorhome Kit Elite Edition by MEDA. Built on the trusted foundation of our Classic Edition, this upgraded system is ideal for full time off grid living in motorhomes campervans RVs and tiny homes. With more capacity smarter monitoring and premium components it is designed for those who need reliable high performance energy day in and day out.

Effortless DIY Installation

Whether you are just starting your off grid journey or you are a seasoned traveller the Elite Edition is pre configured for an easy setup. Spend less time wiring and more time enjoying the freedom of off grid living.

Smarter Energy Management

Stay in control with built in Bluetooth monitoring via the lithium batteries. View voltage state of charge and charging status in real time using your smartphone. For those wanting even more detailed system insights you can add the optional Victron BMV712 Smart Battery Monitor which includes a display screen and advanced performance metrics.

Premium LiFePO₄ Battery Power

This kit is powered by MEDA’s 24V LiFePO₄ lithium batteries delivering outstanding safety long service life and reliable performance day after day. Built to handle New Zealand’s demanding conditions it provides dependable power wherever your setup takes you. Choose from two 24V 100Ah batteries or upgrade to the new 24V 320Ah option for significantly increased energy storage and longer run times.

Power for Everyday Off Grid Living

The Elite Edition is designed to comfortably power the essentials of modern off grid life. It is suitable for running kettles, toasters, microwaves, lighting, water pumps, 12V or 230V fridges, and charging phones, laptops, e bikes, drones and other everyday devices with ease.

Engineered for the Long Haul

Like all MEDA systems the Elite Edition is built from premium proven components selected for durability and reliability. It is the ultimate choice for those who want a robust long lasting power system built for real world off grid living.

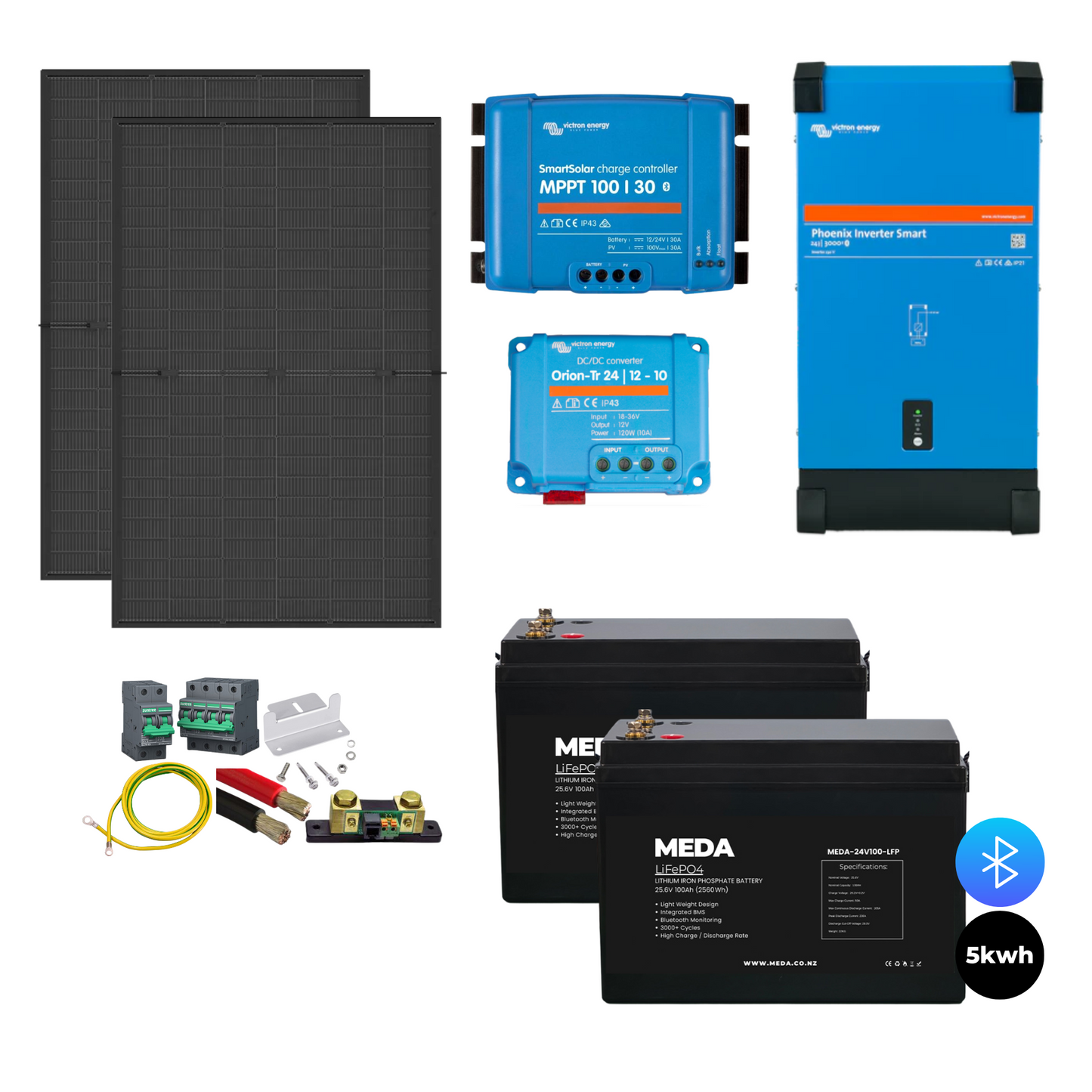

What’s Included Off Grid Motorhome Kit Elite Edition

• 2 x 470W Tongwei Solar Panels (other options available if these do not suit your roof layout)

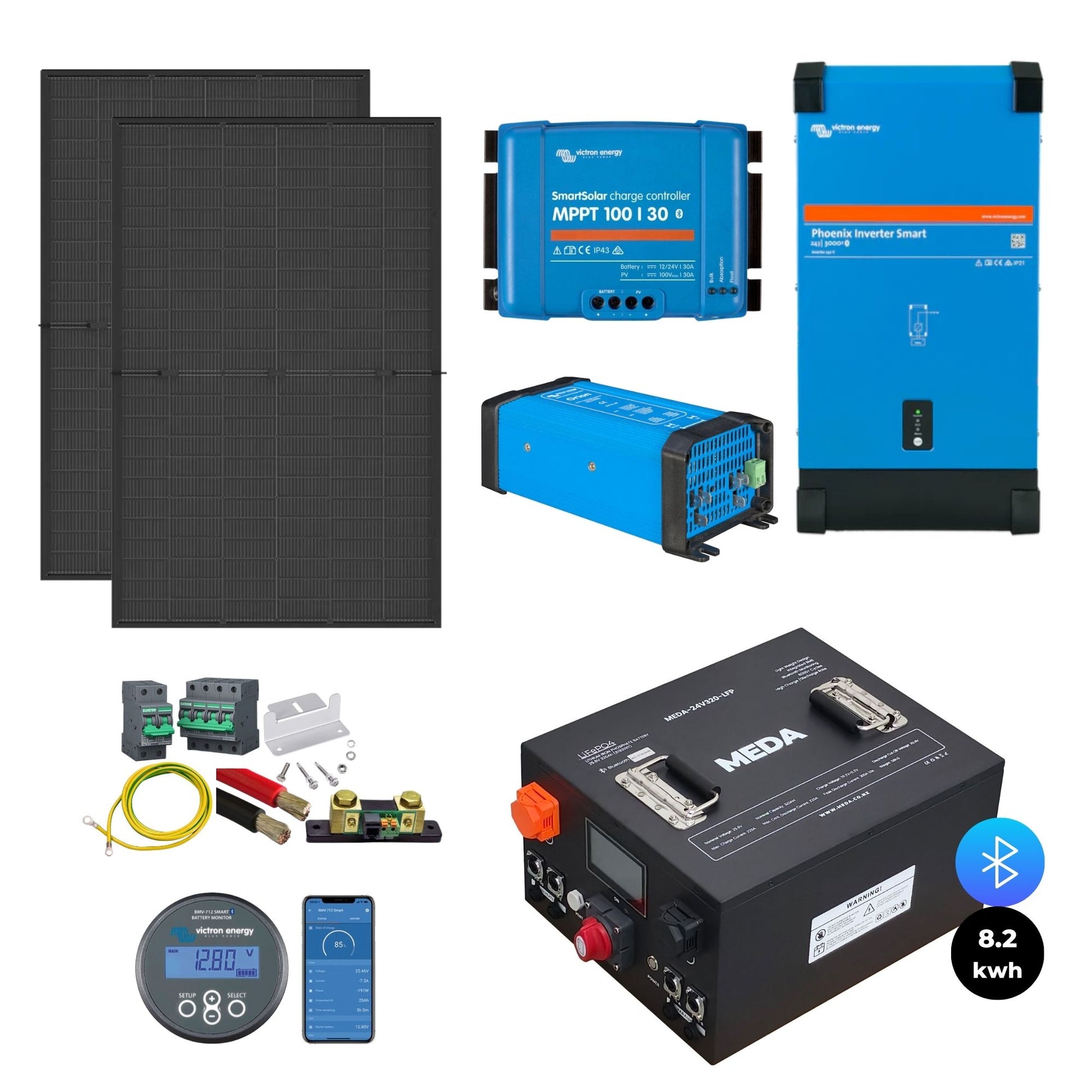

• 2 x 24V 100Ah MEDA LiFePO₄ lithium batteries or 1 x MEDA 24V 320Ah LiFePO₄ lithium battery with Bluetooth
• 1 x Victron Phoenix Inverter Smart 24V 3000VA
• 1 x Victron 24V to 12V 40A DC DC Converter
• 1 x Victron SmartSolar MPPT 100 30 charge controller

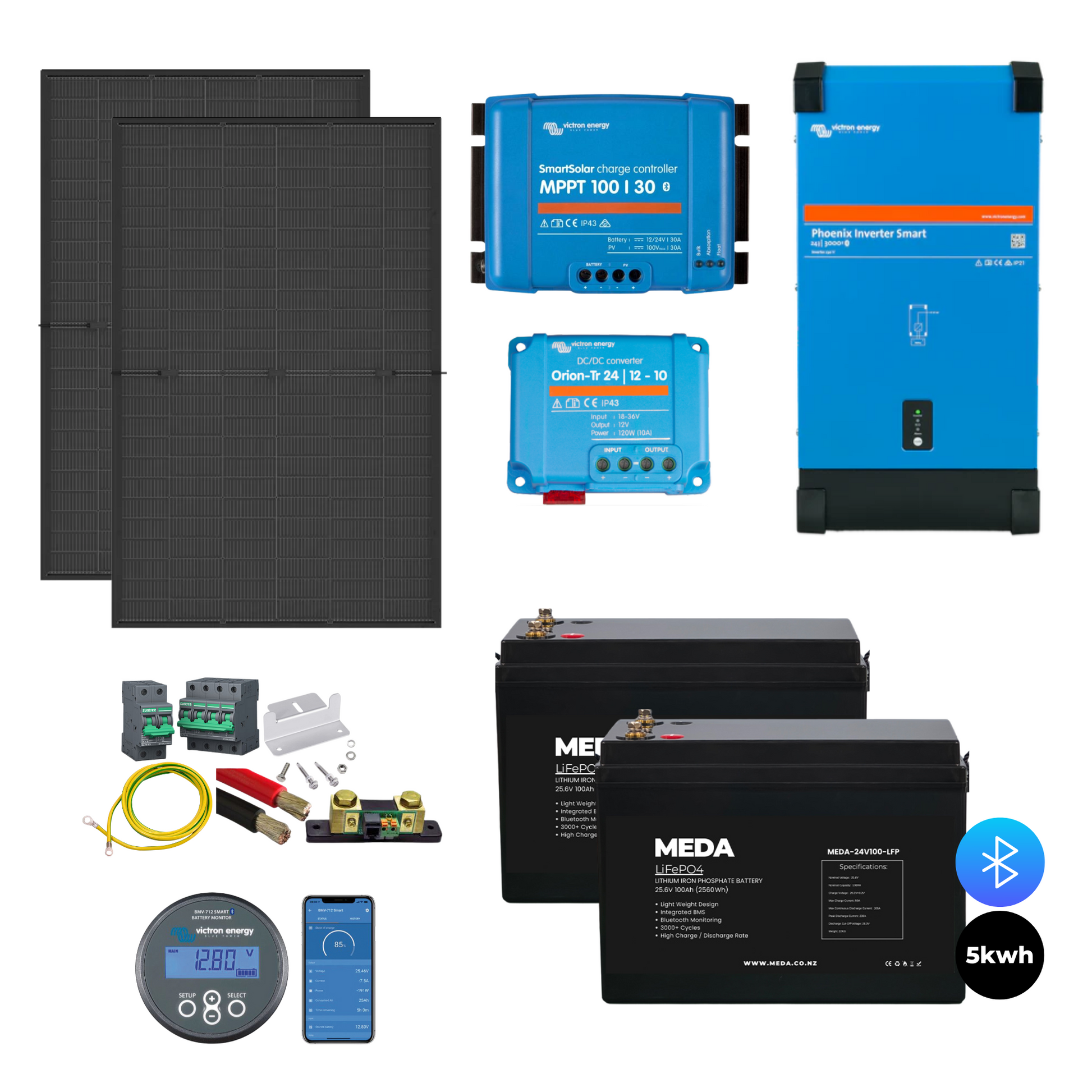

• Victron BMV712 Smart Battery Monitor (optional)
• 32A DC double pole circuit breaker and enclosure
• 6m x 4mm² twin core solar cable
• 4 x pairs of MC4 connectors (male and female)
• 4m x 35mm² double insulated battery cable
• 4m x 6mm² cable (2m red and 2m black)
• Cable lugs
  • 4 x 35 10
  • 4 x 35 8
  • 2 x 35 6
  • 8 x 6 8
  • 4 x 6 6
• 150A mega fuse and holder
• 40A midi fuse and holder
• 20A midi fuse and holder
• Solar mounting kit
• Heatshrink
• Cable entry gland
• Wiring diagram

Installation Support

This kit is pre configured for an easy DIY install. Prefer professional installation or need compliance documentation. Click here to explore our certified installation services.

Note MEDA strongly recommends using a licensed electrician for all 230V connections. Images are for illustrative purposes only. Please refer to the components list for accurate product details.
