PowerDepot2

Smart. Scalable. All-Victron.

Introducing the second-generation PowerDepot — redesigned and upgraded for greater flexibility, increased storage, and even smarter energy management. Whether it’s for a bach, farm shed, or full-time off-grid living, the PowerDepot2 delivers serious power in a compact, prebuilt solution.

Why Choose the PowerDepot2?

✅ All-Victron Quality – Built using Victron’s premium SmartSolar charge controller, MultiPlus inverter/charger, and smart monitoring via the Victron Ekrano GX or BMV. Unmatched reliability and control.

✅ Configurable Solar Options – Choose from 6, 8, 10, or 12 x 440W panels, delivering up to 5.3kW of solar capacity — tailored to your energy needs, with room to grow.

✅ Bigger Battery Bank – Comes with your choice of: • 2 x MEDA 24V 100Ah LiFePO₄ batteries (wired for 48V), offering 5kWh of reliable, Bluetooth-monitored storage
or

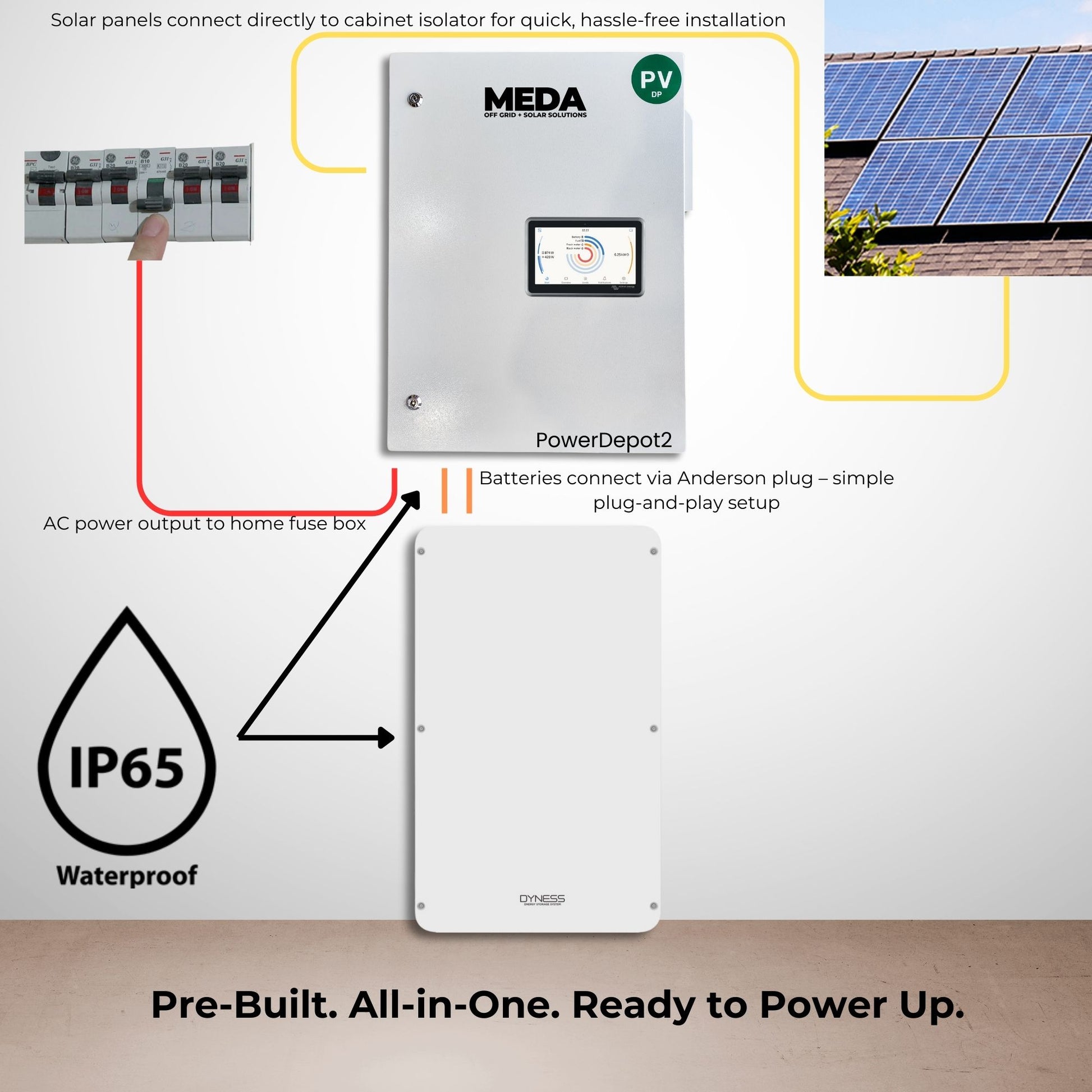

• A Dyness Powerbox Pro 10kWh battery for greater capacity and extended autonomy.
Both options are expandable and built for long-term performance.

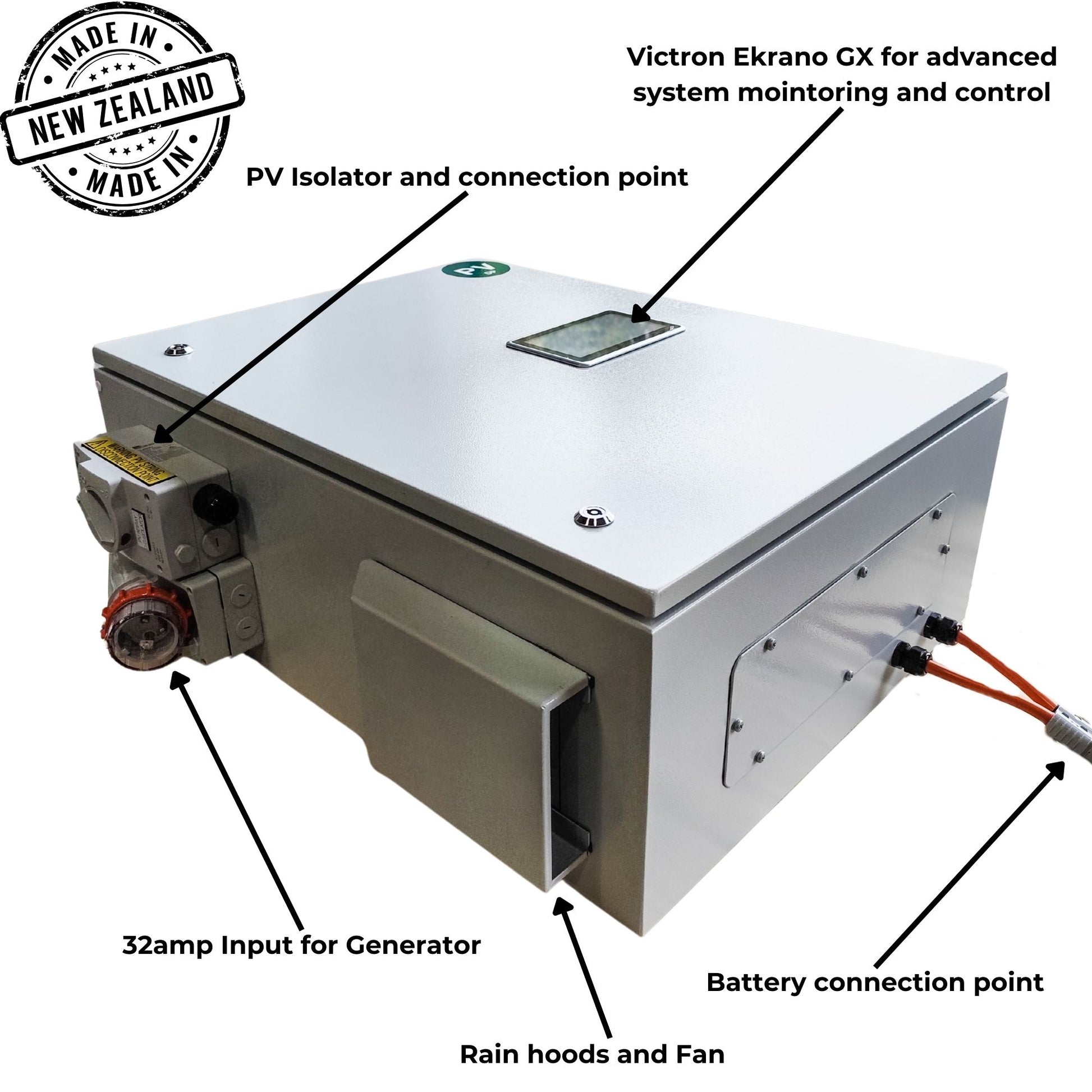

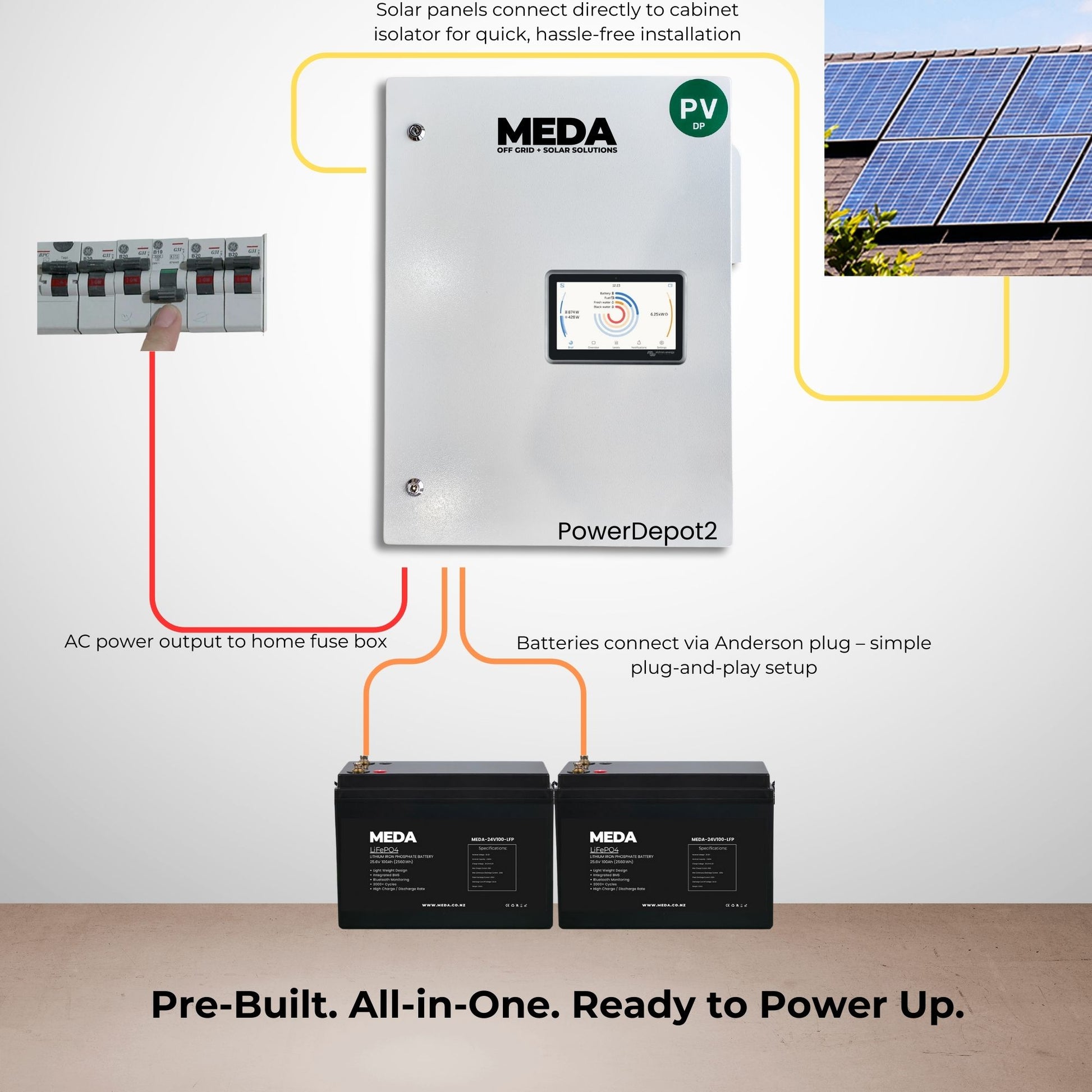

✅ Fully Prebuilt – Delivered ready to go in a robust, powder-coated steel cabinet with all wiring, breakers, fuses, and connections pre-installed. Just mount it, plug in your panels and batteries, and you’re set. A licensed electrician can handle the 230V connection.

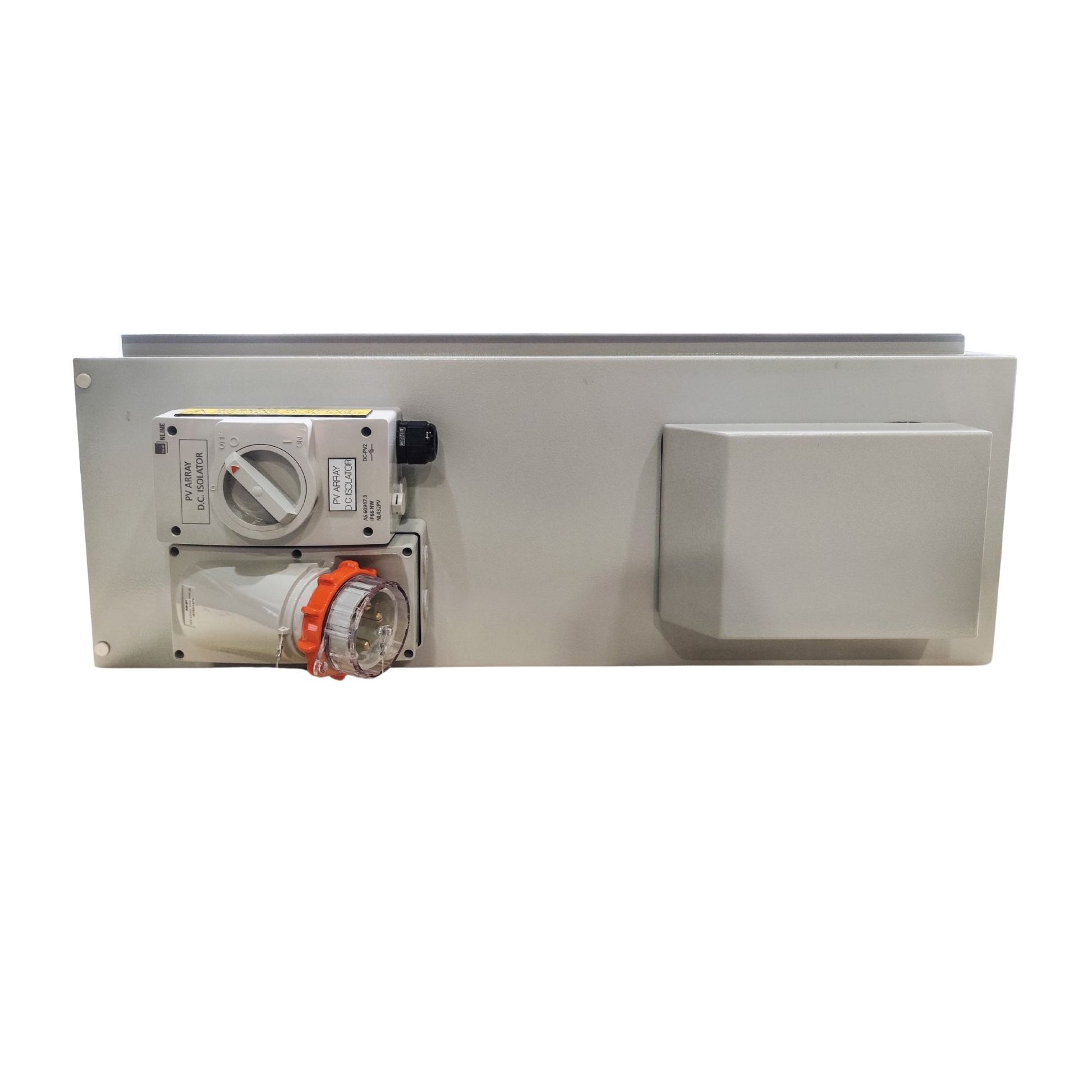

✅ Smart Power Management – Features a 32A AC inlet for generator or shore power with seamless auto-switching, plus a 32A RCBO-protected output for safe, reliable power delivery to your home or workspace. Fully compatible with 2-wire autostart generators.

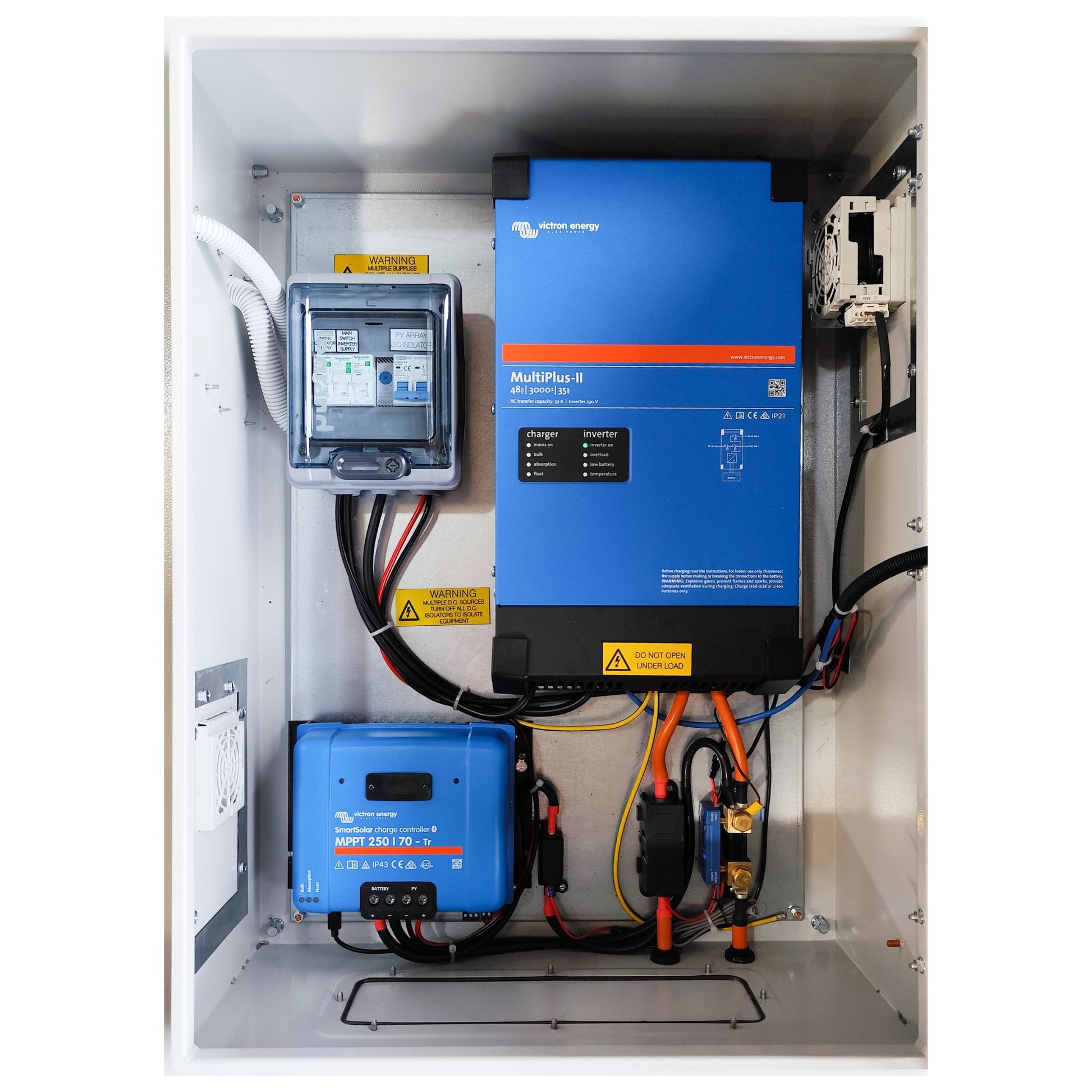

System Components – PowerDepot2 (10-Panel Option)

• High-quality IP-rated cabinet (prebuilt and pre-wired)

• Victron MultiPlus-II 48V 3000W inverter/charger

• Victron SmartSolar 250/70 MPPT charge controller (VE.Can)

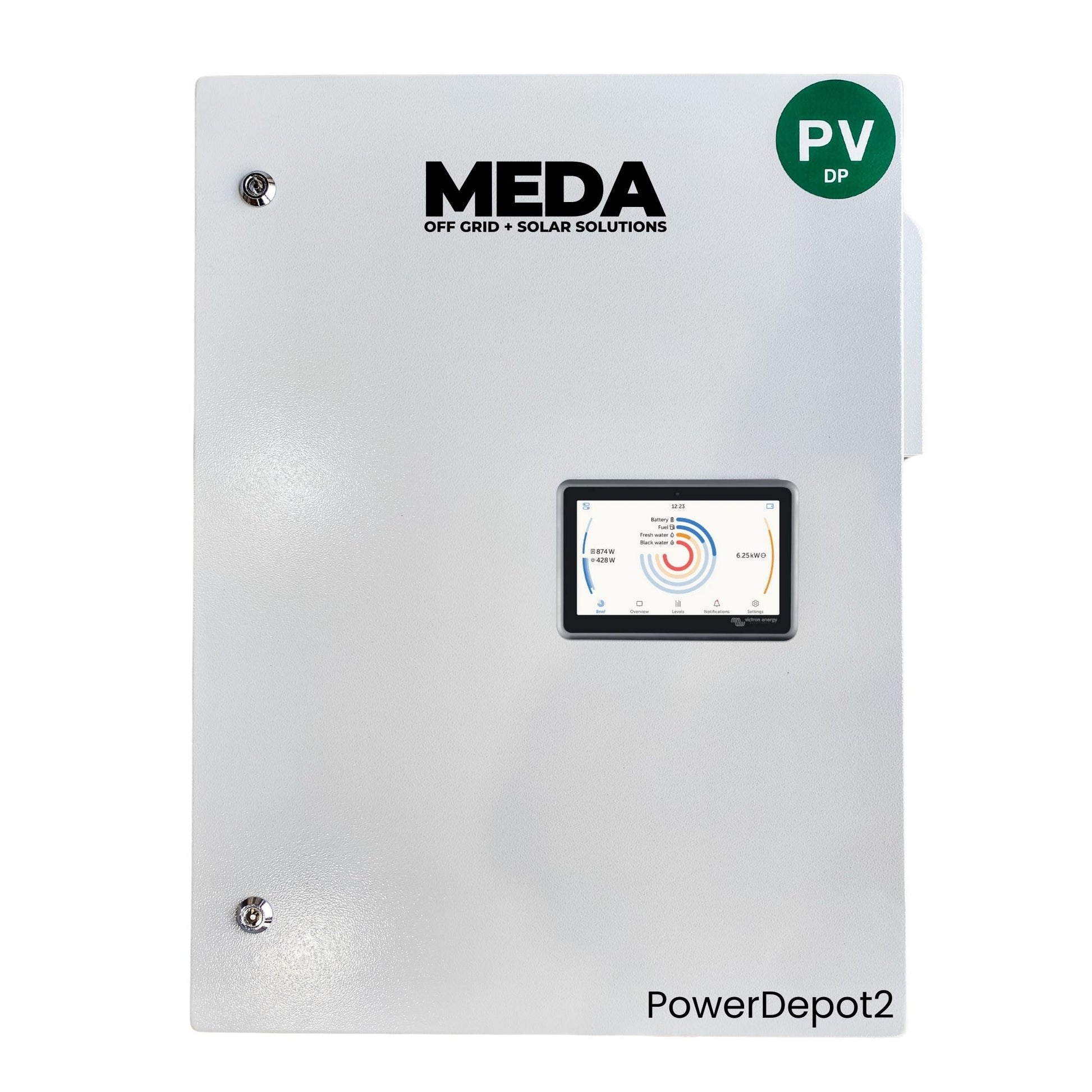

• Victron Ekrano GX monitoring system

• Dyness Powerbox Pro 10.2kWh lithium battery (IP65 rated)

• 10 x 440W DaSolar N-Type Dual Glass solar panels

• Pre-wired switchboard with 32A RCBO

• 32A AC inlet plug for generator or shore power

• 32A double pole solar isolator

• 20m solar extension cables with MC4 plugs

• EzRack tin roof mounting system

• Full wiring diagrams & compliance documentation

☀️ Estimated Daily Solar Production

Based on 440W panels @ 6.5 hrs (summer) and 3.5 hrs (winter)

Not sure what you need? Click here to use our Off-Grid Load Calculator

Note: For 230V connections, MEDA strongly recommends hiring a professional electrician. The image shown is for illustrative purposes only — refer to the components list for accurate product details.
