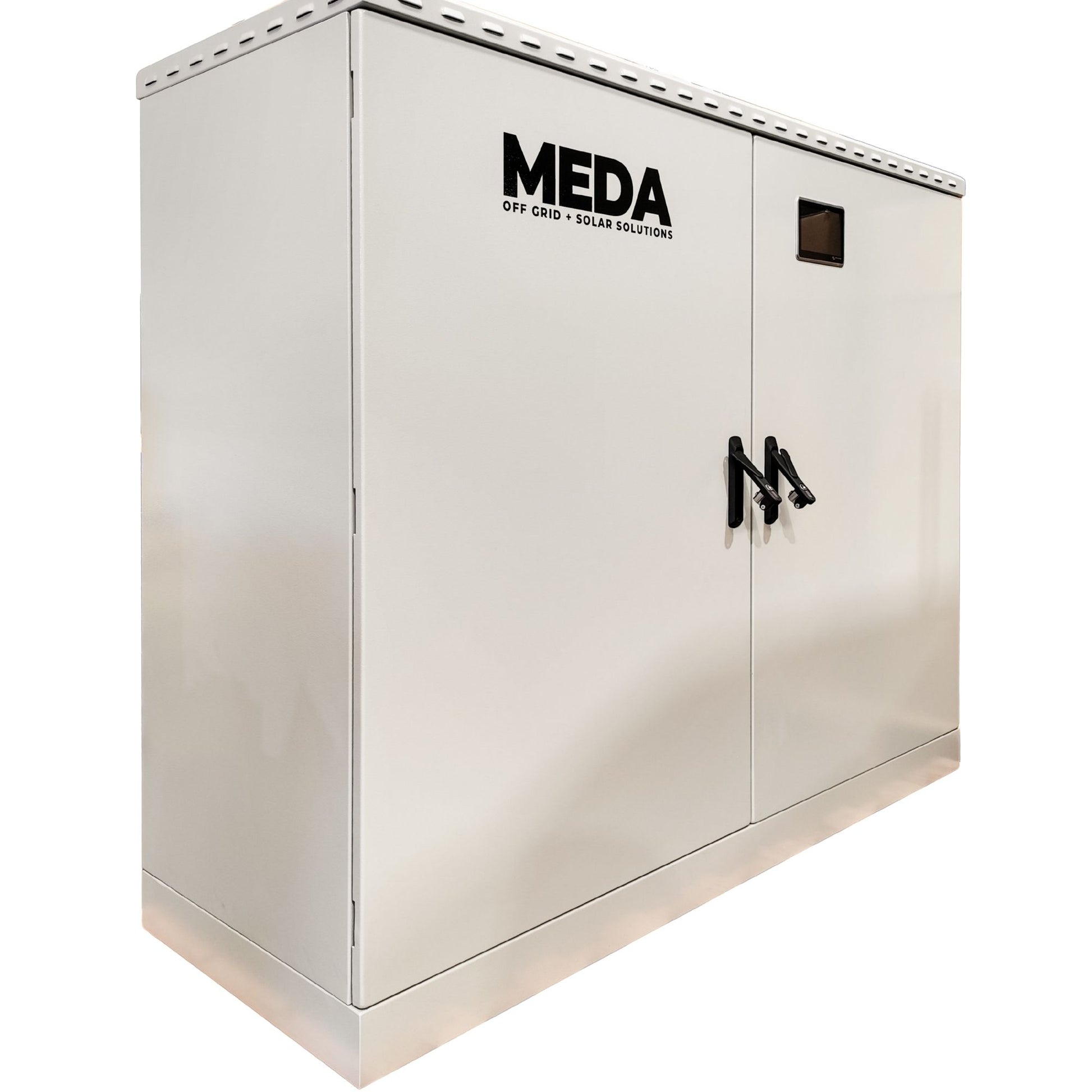

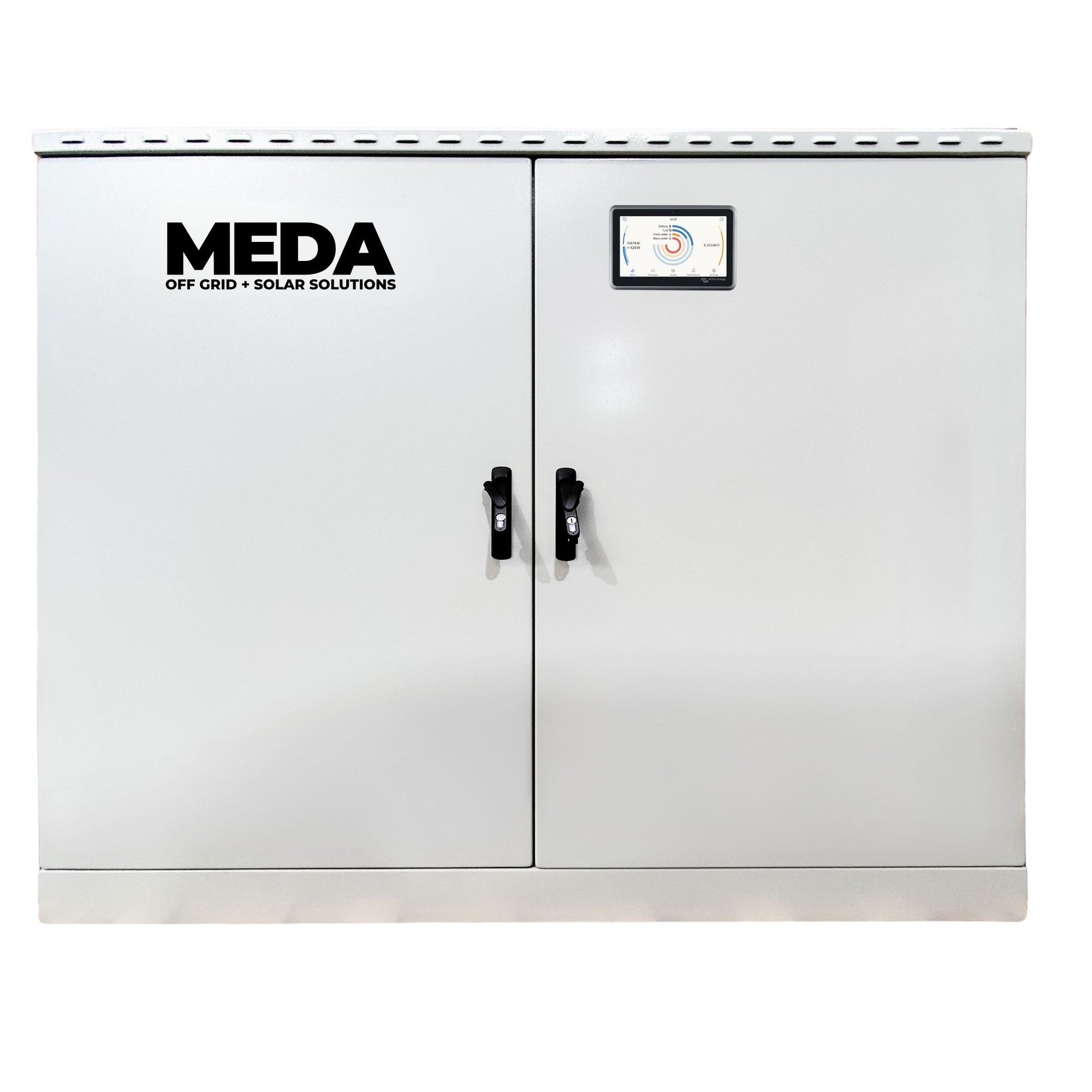

The PowerVault by MEDA – Customisable Off-Grid Power Cabinet
10kVA Inverter | 10kWh Storage | 18 DASolar Panels
The PowerVault is MEDA’s flagship prebuilt solar cabinet — our most powerful and scalable system to date. Designed to meet the needs of serious off-grid homes, rural properties, and remote commercial setups, it comes fully assembled with premium Victron and Dyness components and is housed in a heavy-duty, IP-rated cabinet.
This listing is for the standard PowerVault configuration featuring:
- 10kVA Victron Multiplus-II Inverter
- 4 x Dyness DL5.0 Batteries (20kWh total)
- 18 x DASolar 440W Dual Glass Panels (7.92kW)
Need a larger or smaller system? We can customise the PowerVault with your choice of:
- Inverter size: 8kVA, 10kVA, or 15kVA
- Battery storage: 4 to 8 Dyness DL5.0 batteries (20–40kWh)
- Solar panel count: start with 12 and scale up as needed
Contact us to design a system tailored to your power needs — every PowerVault is built to order.
☀️ Estimated Solar Output (18 Panels)
Based on 6.5 hrs/day in summer and 3.5 hrs/day in winter:
| Panel Configuration | System Size | Summer Output | Winter Output |
|---|---|---|---|
| 18 Panels | 7.92kW | ~51.5 kWh/day | ~27.7 kWh/day |
Not sure what size you need?
👉 Use our Off-Grid Load Calculator to estimate your daily energy usage.

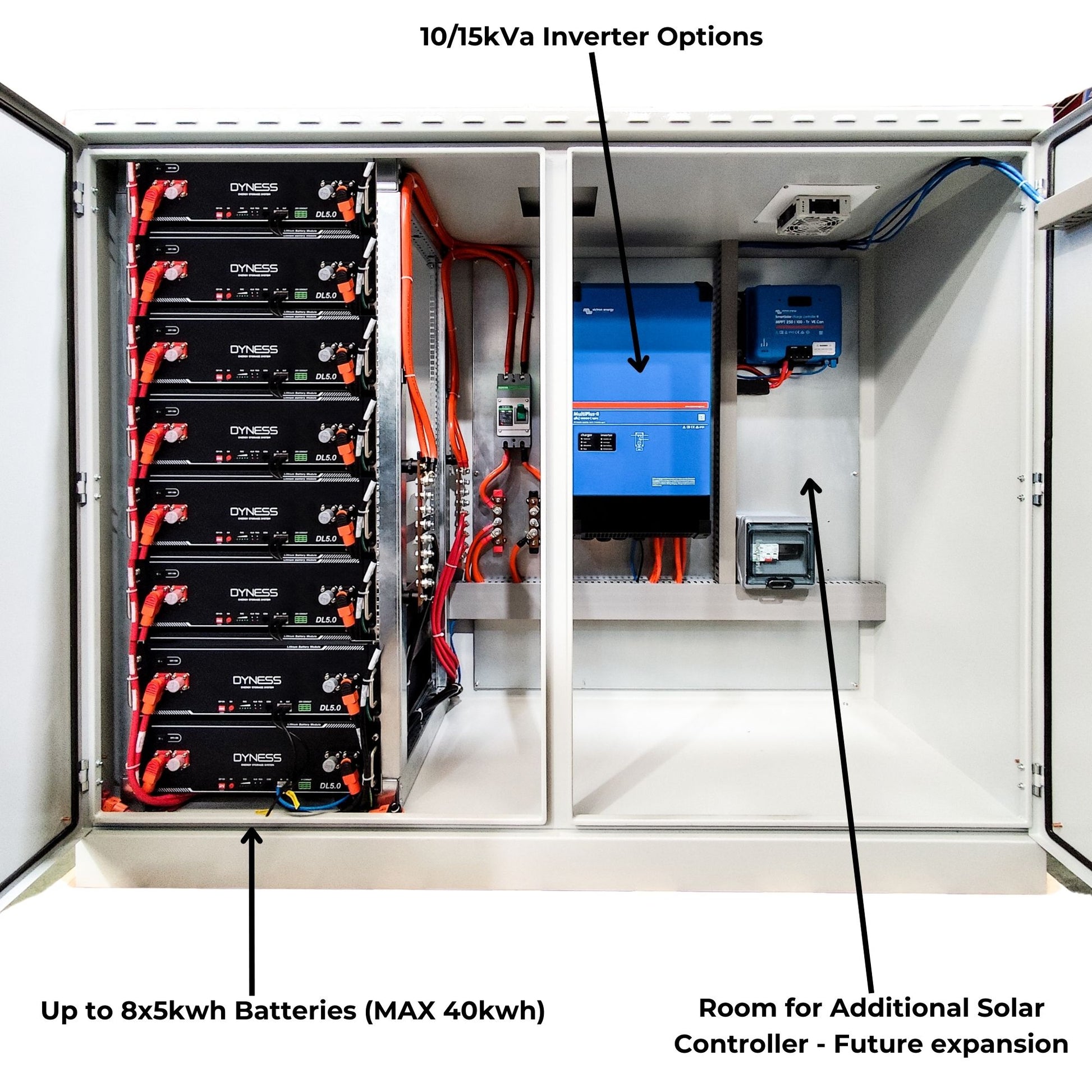

📦 What’s Included – Standard PowerVault (10kWh / 10kVA / 18 Panels)

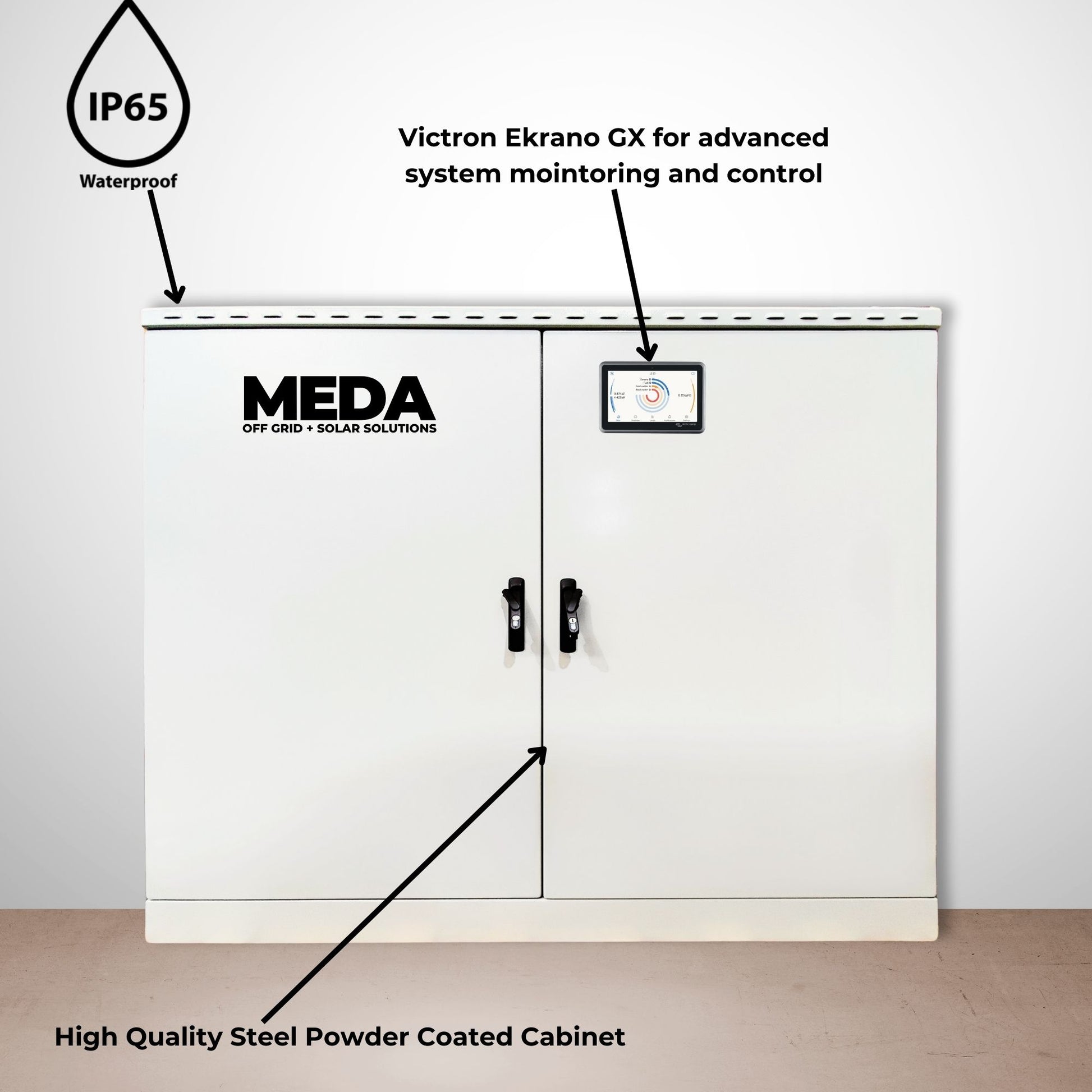

- Heavy Duty IP55 Steel Solar Cabinet (prewired)
- Victron Multiplus-II 48/10000/140-100/100 Inverter/Charger
- Victron SmartSolar MPPT 250/100 VE.Can

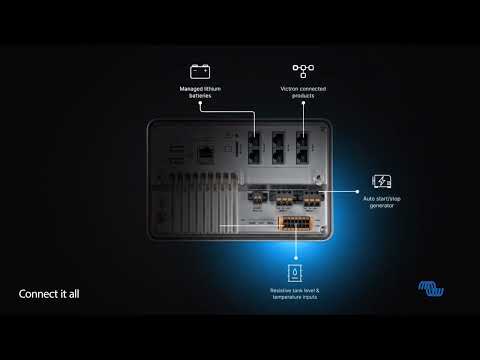

- Victron Ekrano GX + RJ45 patch leads
- Victron Lynx Distributor M8
- 4 x Dyness DL5.0 Lithium Batteries (rack-mounted, stackable) – 20kWh total
- 18 x 440W DASolar Dual Glass Panels (N-Type, bifacial)
- EzRack Tin Roof Mounting Kit
- MC4 Solar Connectors & Solar Cable (40m)
- 6mm Earth Cable (20m)
- High-Current 300A Busbars (Red & Black)
- Suntree 250A DC MCCB Breaker
- Combiner Box – 3 in / 1 out
- Battery cabling: Tycab 25–70mm² + Terminals
- Labour: Fully assembled and tested in-house
🛠 Built to Order – Fully Customisable
Whether you need a compact backup system or a full-scale off-grid installation, the PowerVault can be configured to suit your unique energy needs. Contact us to customise your inverter size, battery storage, and solar array.
Note: MEDA recommends a licensed electrician for all 230V AC connections. Images for illustration only. Final spec depends on your selected configuration.
