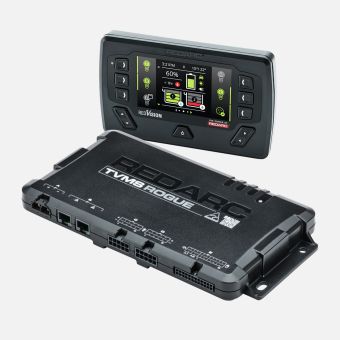

REDARC TVMS Rogue With RedVision Pro Display

At just 25mm thick and with in-built smart fuses, the TVMS Rogue offers a compact and flexible power control solution for caravan, camper and 4x4 applications.

MONITOR

When combined with the RedVision screen and Manager30 battery management system (sold separately), the TVMS Rogue provides real time and accurate state of charge, power input/output and ambient temperature information.

Two analogue tank level inputs offer accurate monitoring of multiple tanks and the Rogue is compatible with most common tank level sensors.

CONTROL

The TVMS Rogue allows complete control of multiple on-board devices including lights, fans, fridges, and pumps. Each of its 10 output channels include dimming and the built-in switch inputs make the Rogue perfect for lighting circuits. With the Rogue connecting to up to 8 physical switches, control is not just limited to the RedVision screen or app. It enables lights to be controlled from each room of a caravan or for the addition of reed switches to trigger lights when opening a door for example.

AUTOMATION

Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.

For the complete RedVision solution, pair your TVMS Rogue with the Manager30 battery management system. Find out more here.

FEATURES:

• 10x 10A dimmable outputs
• 8x inputs allow for use with physical switches
• Compact size
• On-board smart fuses
• Streamlined installation and configuration
• Fully programmable*
• Accurate analogue tank level inputs

ACCESSORIES

The TVMS Rogue is compatible with a range of tank level sensors to ensure your peace of mind knowing exactly how full or empty your tanks are. Perfect for use in water, fuel or wastewater, REDARC's tank level sensors come in a range of lengths.

APP SETUP

The configurator app is only required for initial installation and set up. The RedVision user app is available for both iOS and Android.

REDARC recommends that our products are installed by a qualified auto electrician or technician. We recommend product installation through a member of the REDNetwork, suitably qualified auto electrician or installer which can be found using the Find An Installer tool on the REDARC website.

SpecificationsSpecifications More Information

Operating Temperature	-20°C to 70°C
Weight	.43 kg
height	25 mm
width	130 mm
depth | length	250 mm
Warranty	2 Years
Input Voltage	9 - 16V
Max. Rated Output Current	40A

SHIPPING & RETURNSSHIPPING & RETURNSShipping

REDARC offers customers free freight within Australia on products purchased via the REDARC website, unless a dangerous goods charge is deemed necessary in order to ship products of a lithium chemistry.All products have a 5 day lead time before shipment after which it will be shipped via your preferred shipping method. For alternative freight options please contact REDARC at power@redarc.com.au

For international orders, freight will be calculated at time of checkout. Orders will be shipped from our factory in Lonsdale with delivery timeframes dependant on location.

Where orders are shipped to a delivery address outside Australia, you are responsible for the compliance terms as written in our Website Terms of Use

Returns

The terms and conditions relating to 'Return of goods' set out in our Trading Terms will apply to all good purchased by You via the Site. All goods purchased by You via the Site also come with a manufacturer's warranty found here.

RELATED PRODUCTS

1. BCDC Alpha50 R DC Battery Manager BCDC12050R NZ$1,723.85 Add to Compare Add to Cart

   With a combination of DC and solar charging, the BCDC Alpha50 R is a 12V, 50A DC-DC battery charger perfect for charging batteries used in a range of recreational vehicles and 4x4s so you can adventure for longer.

   Not suitable for engine bay installation.

2. REDWorks Pioneer50 Power Panel ICMS-017-001 Out of stock NZ$4,253.85 Add to Compare Notify me

   Engineered for travellers who want complete control, the Pioneer50 pre-wired dual battery system is an integrated dual battery system featuring the BCDC Alpha50 R and TVMS Rogue.

3. 4x4 Essentials Alpha50 R Kit BCDC12050R-IK1 NZ$1,953.85 Add to Compare Add to Cart

   Get an intelligent, reliable dual battery system with REDARC’s RedVision Essentials Display & BCDC Alpha50 R Kit.

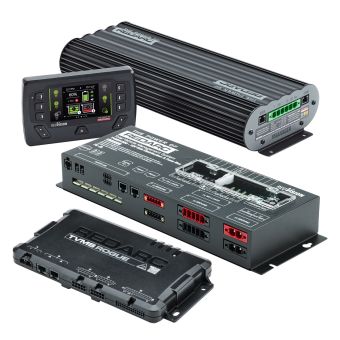

4. Combo RedVision System TVMS1240COMBO-3 NZ$4,803.44 Regular Price NZ$5,337.15 Add to Compare Add to Cart *Online Exclusive Bundle* Combining the smarts of the Rogue and power of the Prime, the Combo RedVision System is the ultimate off-grid power solution.
