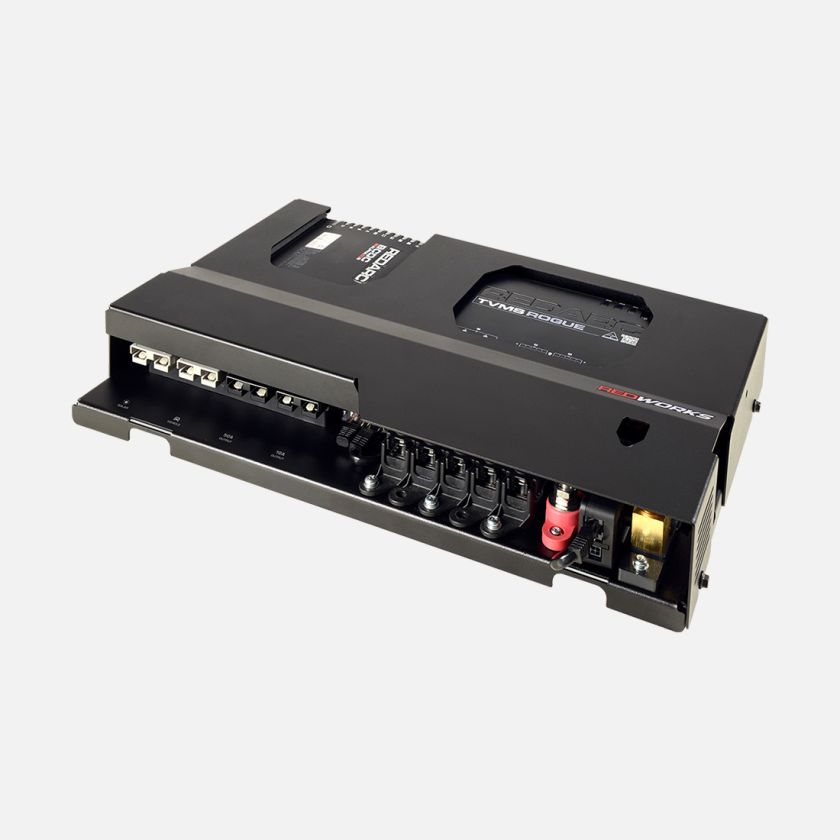

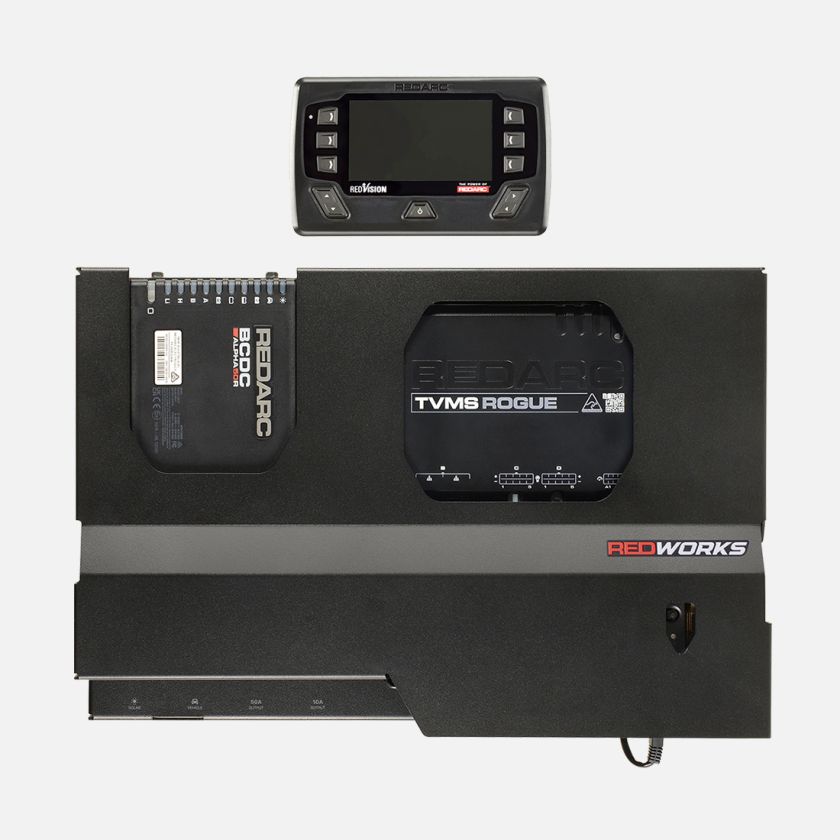

REDARC REDWorks Pioneer50 Power Panel

An integrated pre-wired dual battery system with personalized control and advanced monitoring, engineered for travellers who want complete control over their setup. Whether you’re managing everything from creature comforts to a wide range of onboard accessories, REDWorks Pioneer lets you monitor and automate everything from your phone or RedVision wired display, creating a setup that suits your lifestyle.

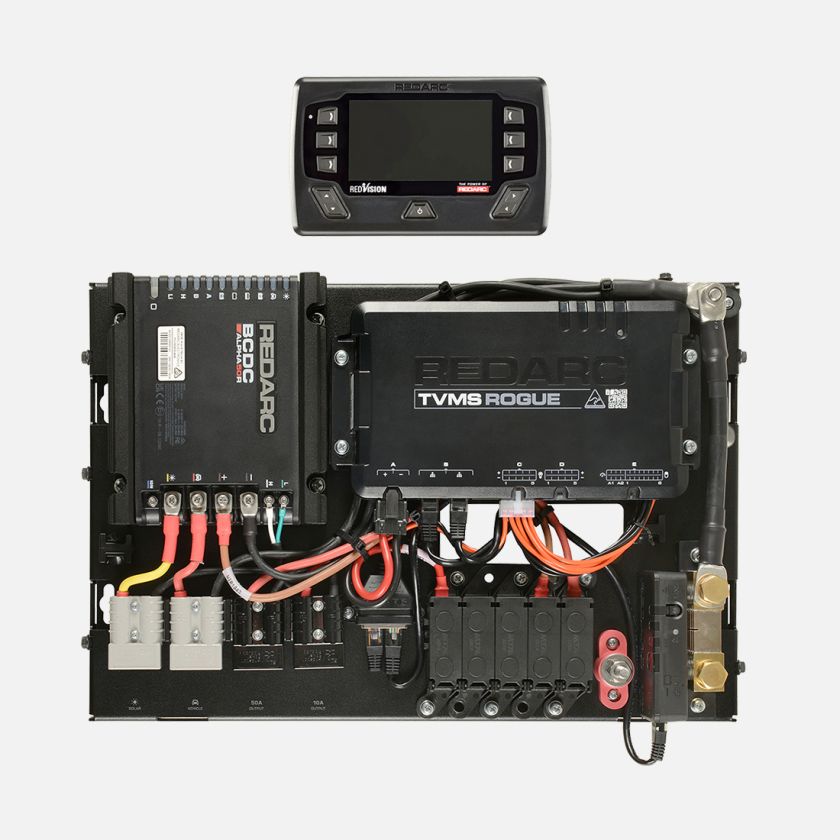

THE PIONEER50 FEATURES:

• BCDC Alpha50 R DC Battery Manager
• TVMS Rogue Vehicle Management System
• RedVision Pro Display

PERSONALISED CONTROL

Design your system based on how you like to travel with programmable, easy-to-understand icons so you can control your devices with a single touch of a button.

RedVision is the central hub for all your on-board devices. Control lights, fridges, water pumps and more from your smartphone or RedVision Pro Display.

Design your system based on how you like with 10 devices such as USB sockets, 12V cigarette sockets, standard fridges, lighting, pumps or awnings.

The TVMS Rogue includes two analogue sensor inputs to the panels real-time monitoring, providing the state of charge percentage, time remaining, and charger performance – all visible through RedVision.

NEVER GET STRANDED

Recover your flat start battery with the push of a button, getting you back on the road quickly and safely.

The BCDC Alpha50 R’s Start Battery Charging uses excess solar to keep your start battery topped up. Additionally, Start Battery Recovery will recover a flat start battery in just 15 minutes without jumper leads.

The TVMS Rogue’s smart, resettable fuses can also be reactivated in seconds via the RedVision Pro Display or app, helping you avoid downtime and manual diagnostics.

READY-TO-GO POWER

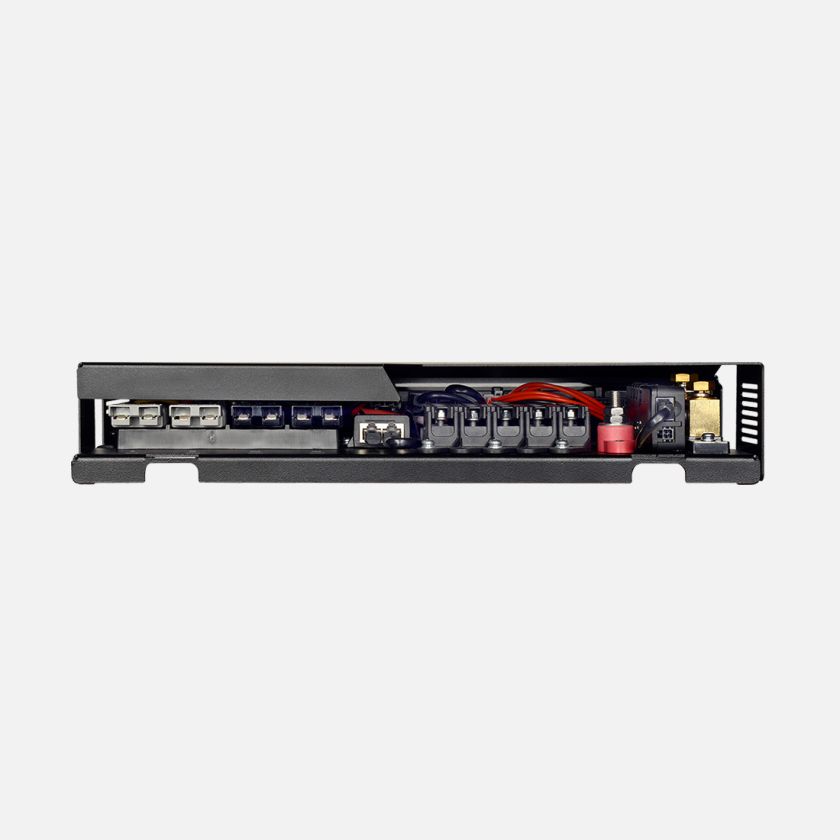

Connect your essentials in seconds with easy-access Anderson™ ports. Whether it’s a fridge or a solar panel, your system’s ready when you are.

With the BCDC Alpha50 R on board, Pioneer50 can use excess to automatically top up the start battery when the auxiliary battery is full.

The 10A Anderson™ SB50 output is for low-power devices such as USB sockets, 12V cigarette sockets, standard fridges, lighting, pumps or awnings.

The 50A Anderson™ SB50 output is ideal for high-power devices drawing up to 50A, such as 12V fridges, large compressors, or electric jacks.

CHARGE WITH CONFIDENCE

Stay powered and informed with DC and solar charging, while the Pioneer50’s real-time battery monitoring gives you the full system visibility so you can travel further with confidence.

Charge your secondary battery from solar and alternator inputs simultaneously, with Green Power Priority® technology, the solar will be prioritized for maximum efficiency and reduced alternator load.

Unlike standard DC chargers, the BCDC Alpha50 R adjusts it’s charge mode in real time to meet your battery’s needs, maximizing efficiency and extending lifespan, functioning as a true battery manager.

Compatible with all common battery types including lithium and heated lithium, and featuring over-the-air updates, the Pioneer50 pre-wired dual battery system can even limit input current, making it ideal for hybrids and electric vehicles.

Pioneer50’s Start Battery Charging uses excess solar to keep your start battery topped up. Additionally, the included BCDC Alpha50 R features Start Battery Recovery. It can recover a flat start battery in just 15 minutes with just the touch of a button.

REDARC recommends that our products are installed by a qualified auto electrician or technician. We recommend product installation through a member of the REDNetwork, suitably qualified auto electrician or installer which can be found using the Find An Installer tool on the REDARC website.

SpecificationsSpecifications More Information

gtin_barcode	9338628011599
Warranty	2 Years
