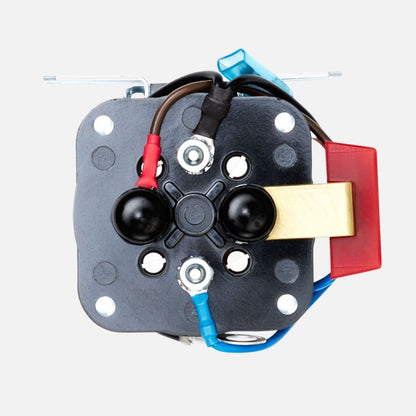

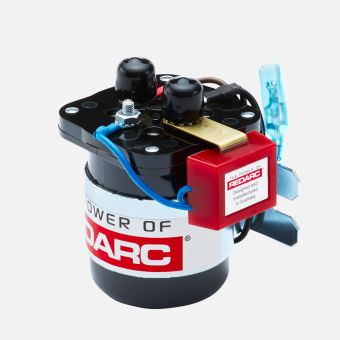

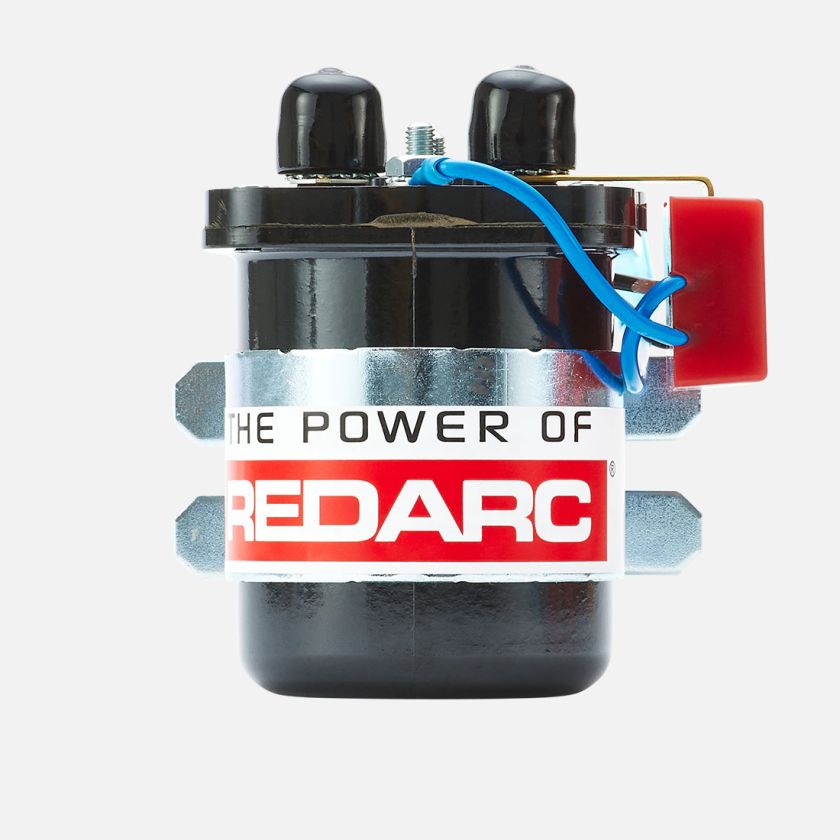

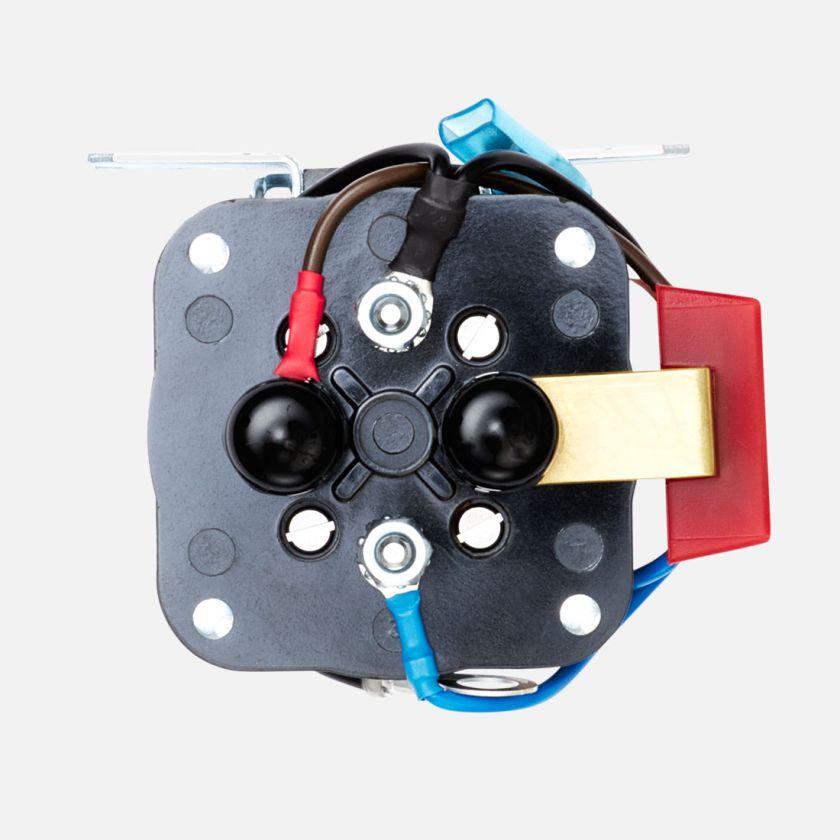

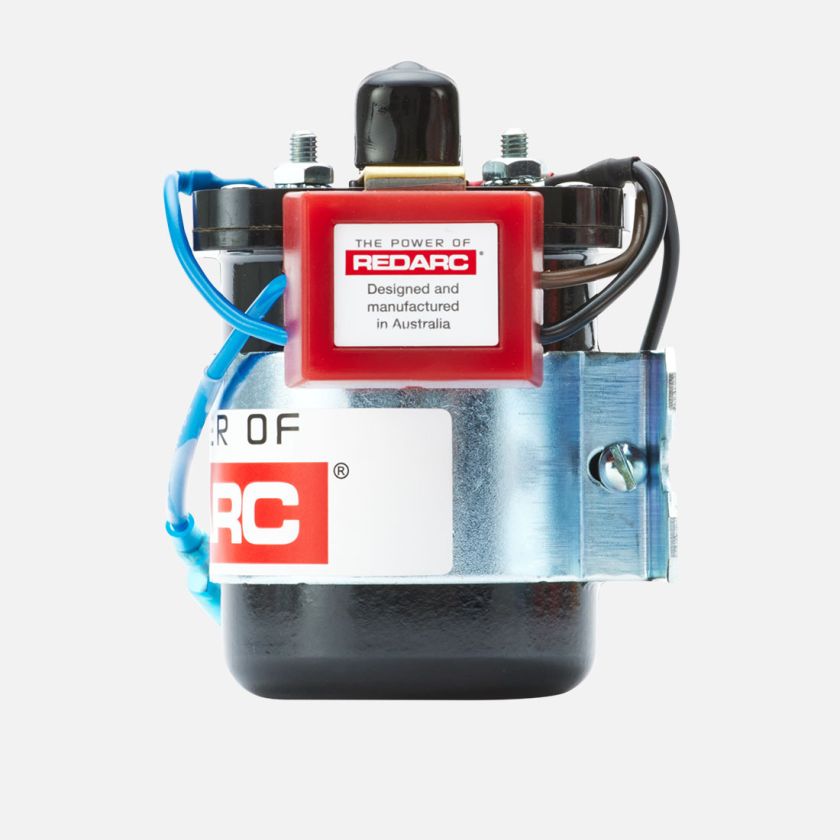

REDARC Smart Start SBI 12V 200A

The REDARC Smart Start® SBI212 is a battery isolator used as a solenoid priority system to protect that start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. The SBI212 provides 12 volt DC incorporating 200A of continuous ratings, the battery isolator is designed for extremely heavy-duty operations.

Power Saving Technology

Primarily used in commercial vehicle dual battery systems, it incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features a low standby current draw and sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

The Smart Start SBI battery isolator is a safe way to charge dual battery system and should often be installed with a high quality fuse kit.

Features

• Overmould design
• Compact in size and easy to install
• Silver contacts for longer life and suitable for marine applications
• Power saving technology
• Fault indication
• Fully surge protected

Not sure what dual battery system is best for your vehicle? Let Shaun Whale explain more.

REDARC recommends that our products are installed by a qualified auto electrician or technician. We recommend product installation through a member of the REDNetwork, suitably qualified auto electrician or installer which can be found using the Find An Installer tool on the REDARC website.

SpecificationsSpecifications More Information

gtin_barcode	9338628000043
brand	REDARC
Max. Inrush Current	600A
Max. Continuous Current	200A
Turn On Voltage	13.2V
Turn Off Voltage	12.7V
Turn On Delay	5 seconds
Turn Off Delay	10 seconds
Standby Current	<5mA
Weight	1.3 lb (600 g)
height	3.54" (90 mm)
width	3.74" (95 mm)
depth | length	3.94" (100 mm)
Warranty	2 Years
System Voltage	12V
Output Voltage	12V DC
Input Fuse Rating	200A
Output Fuse Rating	200A
