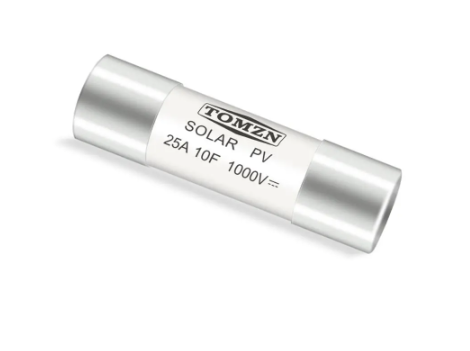

Solar DC 1000V PV Fuses

Solar DC 1000V PV Fuses

Regular price $10.00 NZD
Regular price Sale price $10.00 NZD
Sale Sold out
Shipping calculated at checkout.
Amp Rating

PV String Fuses for Solar Panels

  • Package: 10x38mm
  • Voltage: Rated at 1000VDC

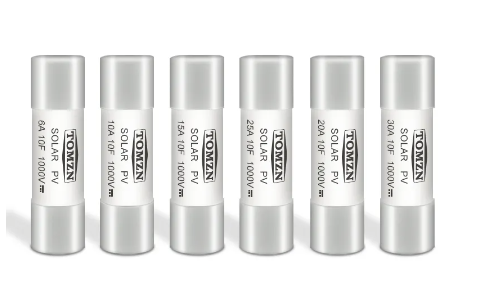

  • Fuse Ratings Available: 6A, 10A, 15A, 20A, 25A, 30A
  • Break Capacity: 33kA DC
  • Minimum Interrupting Rating: 1.3x In
  • Time Constant: Under 1ms
  • Standards: IEC 60269-6, EN 60947-3, DC-20B

Features:

  • Specifically designed for the protection and isolation of photovoltaic strings.
  • Capable of interrupting low overcurrents in faulted PV arrays.

Applications: Suitable for Solar Panels, Photovoltaic Systems, and DC Strings.

Recommendation: For any photovoltaic string rated up to 1000VDC, it's advised to use fuses on both positive and negative terminals.

Note: The listing is for a single fuse. A 2-pole fuse holder requires 2 fuses. If in need of a fuse holder, Click Here.
