The Ultimate Tiny Home kit
The Ultimate Tiny Home kit
The Ultimate Off Grid DIY Kit to suit Tiny Home, Cabin or Bach
Comes with everything you need to setup an off grid installation. Including Lithium batteries for 10-20+ year life span and a Growatt all in one controller and inverter.

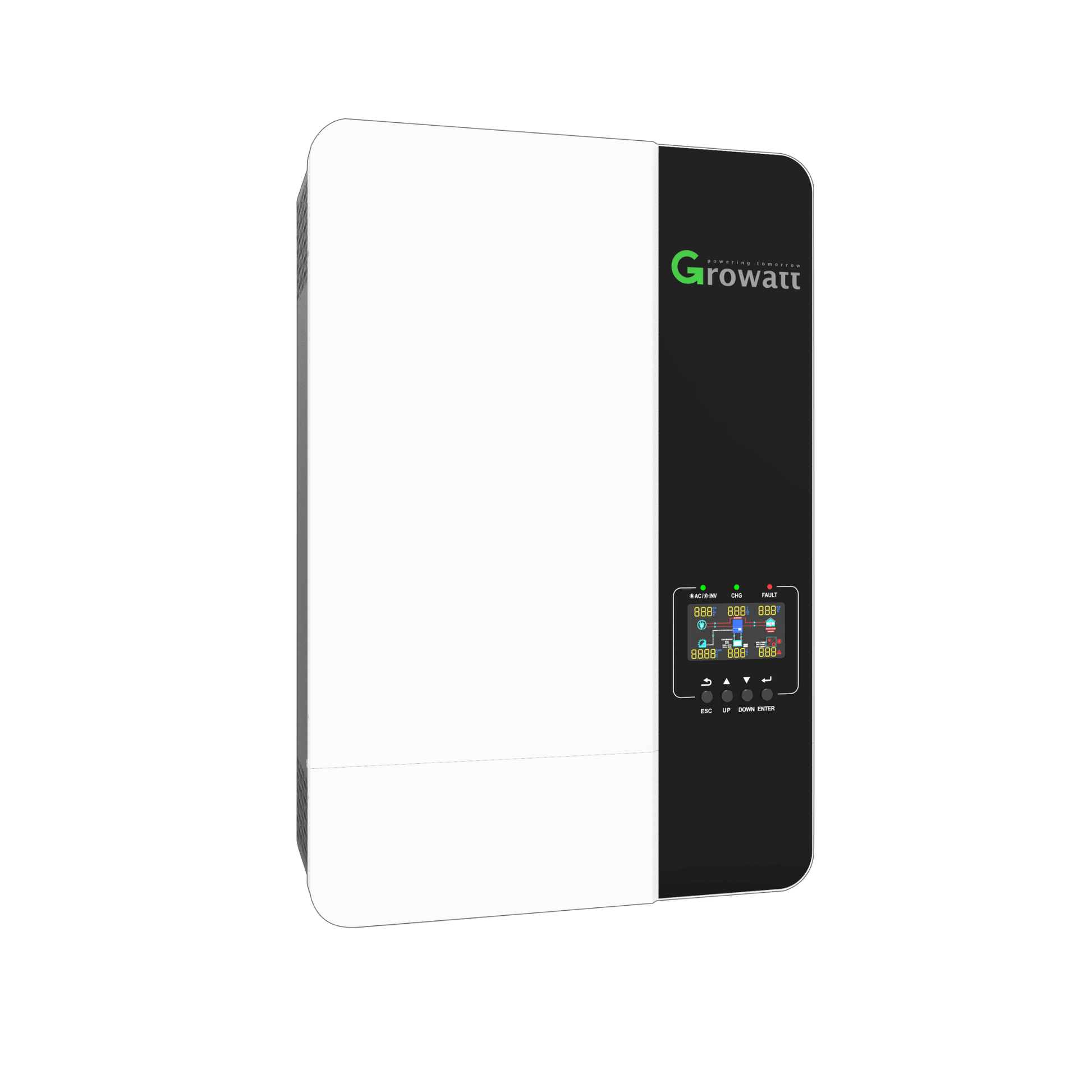

The SPF 5000 ES Growatt Solar Inverter can work with or without batteries. This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter, and a UPS function module all in one machine, which is perfect for off grid backup power and self-consumption applications.
This system can Auto start a generator to charge batteries and power the load. It also has WIFI for remote monitoring.
This kit has a few different options available. If unsure what would best suit your needs we are happy to help size your system.

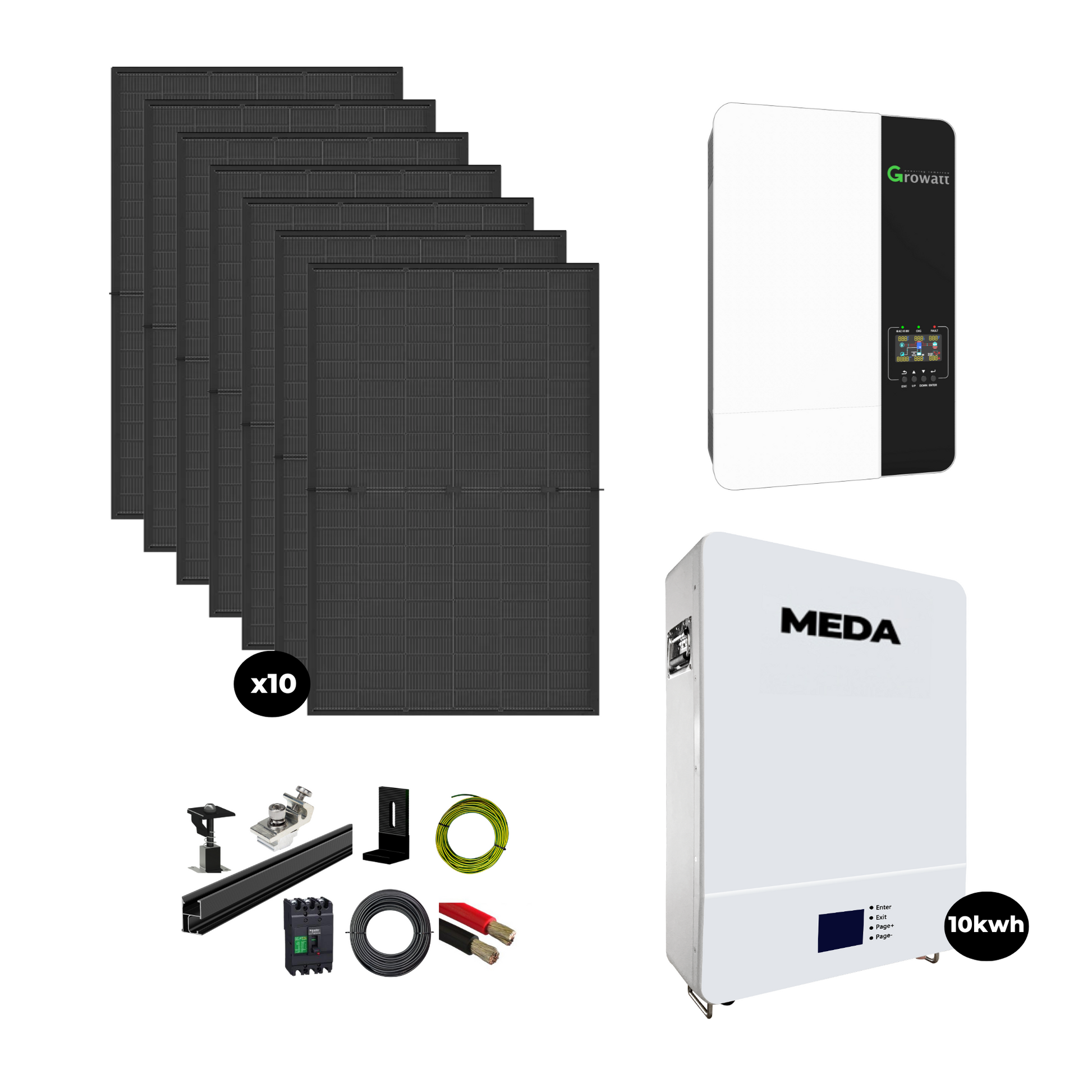

What's Included:
- SPF 5000 ES Growatt Solar Inverter
- 415watt Canadian Solar Mono Solar Panels 8, 10 or 12

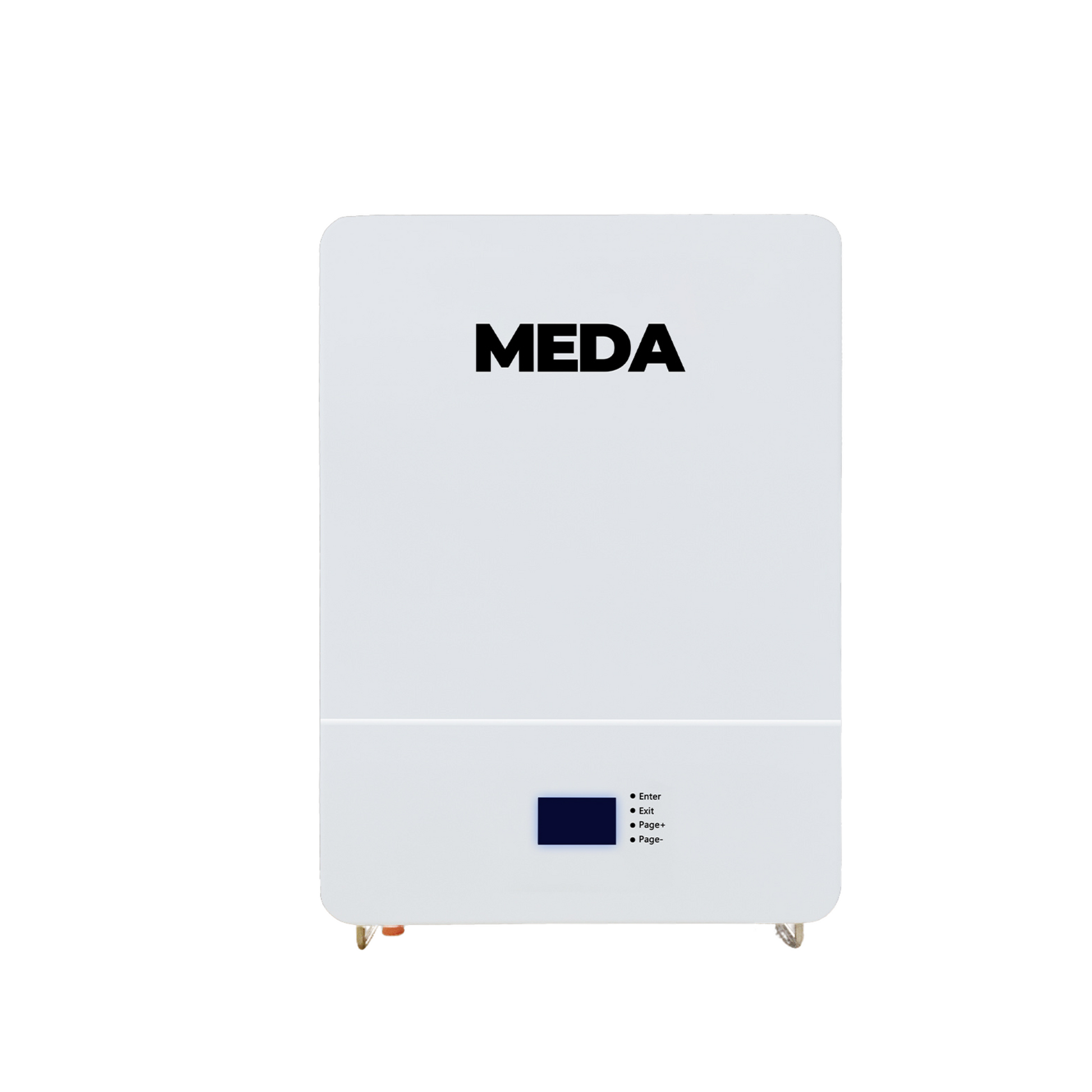

- Lithium Powerwall's 5kwh or 10kwh storage
- 20m of 4mm2 Solar cable with MC4 plugs
- Rail mounting kit. Roof mounts, tilt legs roof mount or ground mount options
- Solar label kit
- 125a MCCB breaker
- 16a Circuit Breaker and Distribution Box
- 10m Earth Cable
- 3m 35mm2 Battery Cable
- Install guide and diagram
- Preconfigured for easy installation
The 8 panel kit expected output summer 20kwh and winter 10-12kwh*
The 10 panel kit expected output summer 25kwh and winter 12-15kwh*
The 12 panel kit expected output summer 30kwh and winter 15-20kwh*
*These are calculated at 6 sun hours for summer and 3-4 sun hours in winter
These systems come pre-configured to your requirements before we ship out.
MEDA recommends an electrician to complete any 230v connections.
