Vision 12v 100ah Lithium Battery

Vision 12v 100ah Lithium Battery

Regular price $840.00 NZD
Regular price Sale price $840.00 NZD
Sale Sold out
Shipping calculated at checkout.

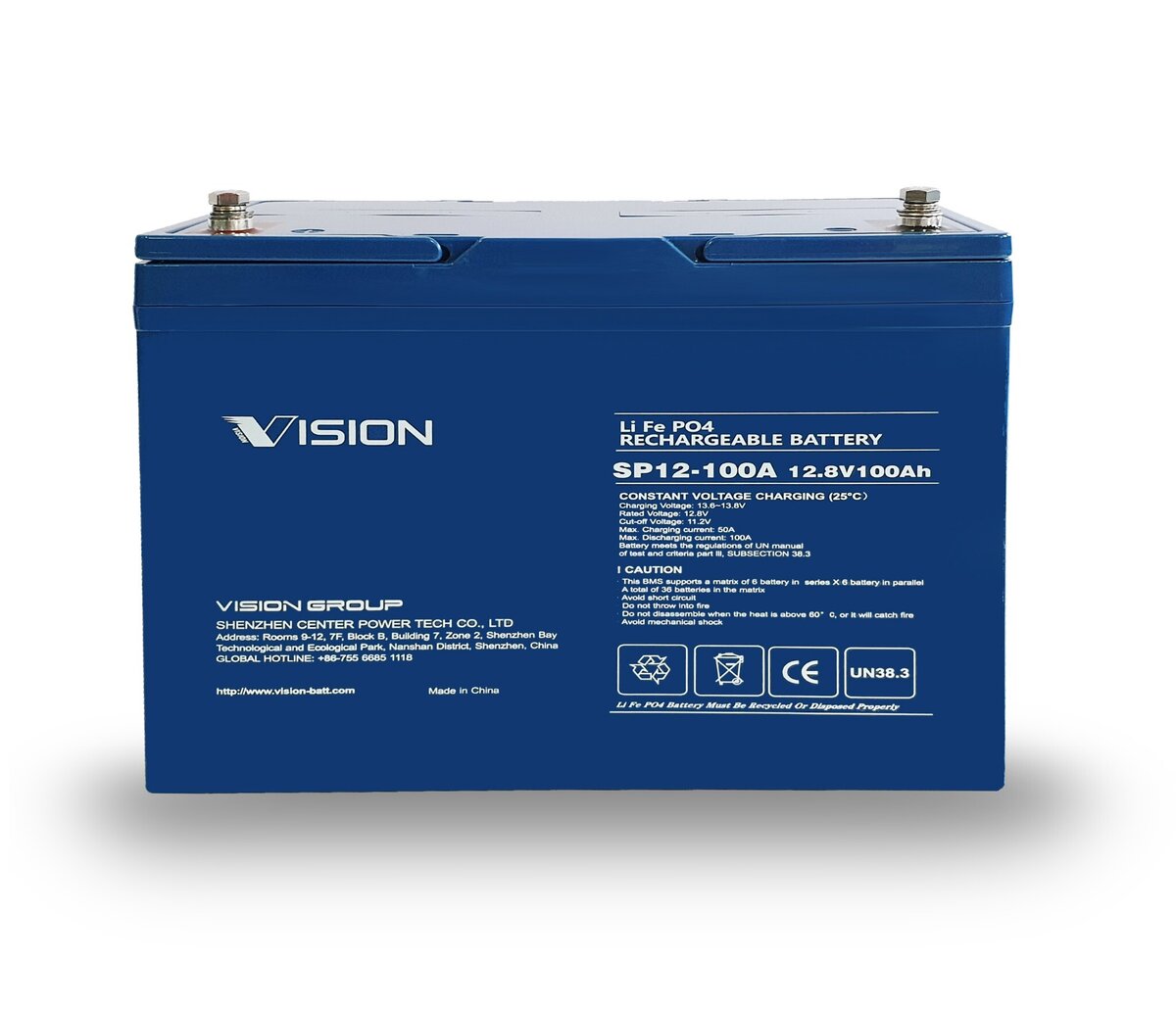

Vision SP12-100A Lithium Deep Cycle Battery: 12V, 100AH

LiFePO4 battery solution from Vision Technology, suitable for UPS, Energy storage systems, and Recreational Vehicles.

Features:

  • Protection board functions and parameters
  • Balance management system
  • Over-charge and over-discharge protection
  • Recharging capability
  • Series and parallel connection support

Dimensions: W306mm x H215mm x D169mm

Specifications:

  • Cell Configuration: 4S1P
  • Voltage: 12.8V
  • Capacity: 100Ah
  • Energy: 1.28KWh
  • Max Charge Current: 50A
  • Max Discharge Current: 100A
  • Cycle Life: Approx. 2500 cycles at 25°C, 0.5C/0.5C, 80% DOD
  • Weight: Approx. 10kg
  • Connection: Up to 6 in series, up to 6 in parallel
  • Recommended Discharge Voltage: 11.2V
  • Recommended Charge Voltage: 13.6V - 13.8V
  • Cell Type: Prismatic LiFePO4
  • Terminal Type: M8
  • Protection: IP65

Specifications

Cell Series & Parallels 4S1P

Rated Voltage(V) 12.8

Rated Capacity(Ah) 100

Rated Energy(KWh) 1.28

Maximum Charge Current(A) 50

Maximum Discharge Current(A) 100

Life cycle (@25 ,0.5C/0.5C,80%DOD) Approx. 2500

Total Weight(Kg) Approx.10

Series less than 6, parallel less than 6

Recommended discharge voltage(V) 11.2

Recommended charge voltage(V) 13.6 ~ 13.8

Cell Type-Chemistry Prismatic LiFePO4

Terminal Type M8

IP grade IP65
