Vision

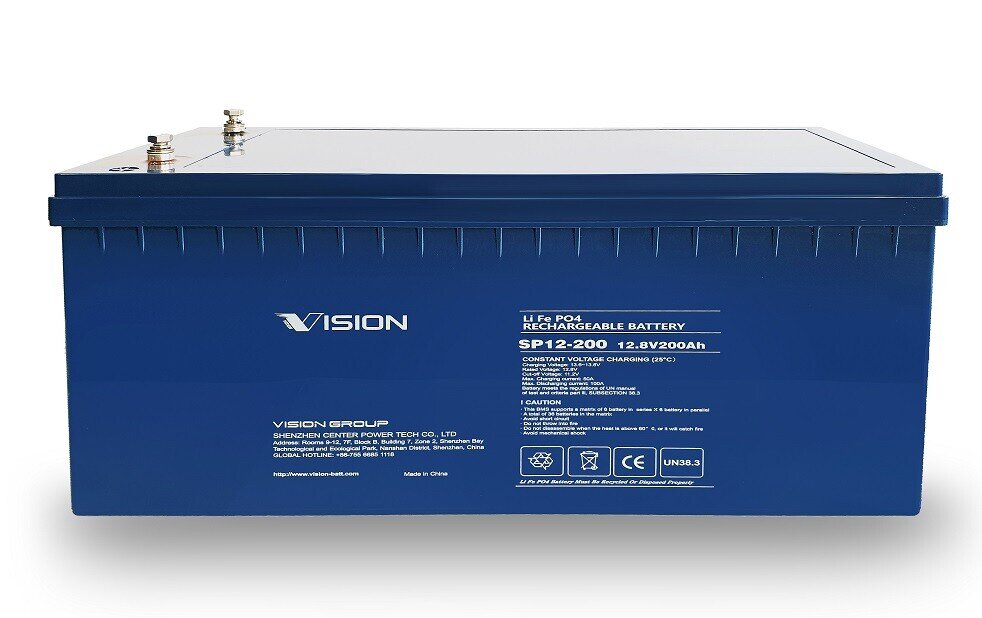

Vision 12v 200ah Lithium Battery

Vision 12v 200ah Lithium Battery

Regular price $1,750.00 NZD
Regular price Sale price $1,750.00 NZD
Sale Sold out
Shipping calculated at checkout.
  • Vision SP12-200A Lithium Deep Cycle Battery: 12V, 200AH

    LiFePO4 battery solution from Vision Technology, perfect for Motorhomes, Caravans, RVs, and Marine use, as well as for UPS and Energy storage systems.

    Features:

    • Customized protection board functions and parameters.
    • Intelligent balance management.
    • Built-in protection against over-charge and over-discharge.
    • Rapid recharging capabilities.
    • Supports series and parallel connection.

    Specifications:

    • Voltage: 12.8V
    • Capacity: 200Ah
    • Energy: 2.56KWh
    • Max Charge Current: 50A
    • Max Discharge Current: 100A
    • Cycle Life: >4,000 @50% DOD; >2,600 @80% DOD; >1,400 @100% DOD.
    • Weight: [Not specified]
    • Cell Type: Prismatic LiFePO4
    • Terminal Type: M8
    • Dimensions: L500mm x W240mm x H220mm

Specifications

Cell Series & Parallels 4S1P

Rated Voltage(V) 12.8

Rated Capacity(Ah) 200

Rated Energy(KWh) 2.56

Maximum Charge Current(A) 50

Maximum Discharge Current(A) 100

Life cycle (@25 ,0.5C/0.5C,80%DOD) Approx. 2500

Length 500mm x Width 240mm x Height 220mm

Series less than 6, parallel less than 6

Recommended discharge voltage(V) 11.2

Recommended charge voltage(V) 13.6 ~ 13.8

Cell Type-Chemistry Prismatic LiFePO4

Terminal Type M8

IP grade IP65
